1986716-8

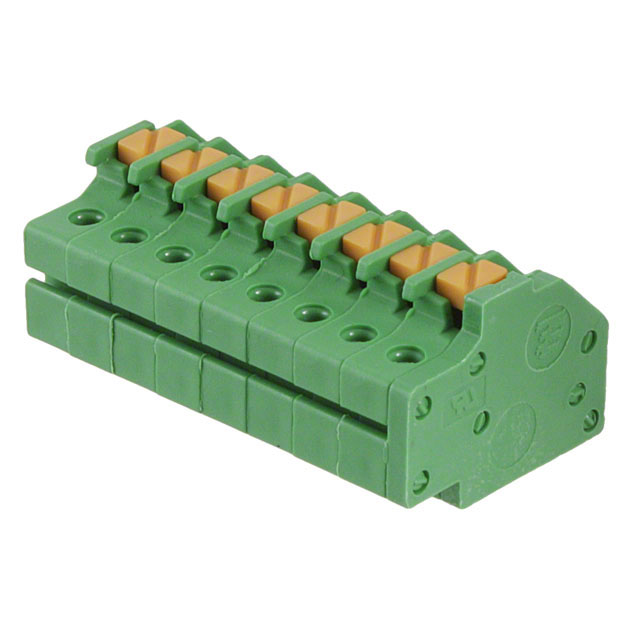

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1986716-8 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1986716-8 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1986716-8 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | TERM BLOCK PLUG 8POS 90DEG 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.441 | $2.948 | $2.813 | $2.529 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.394 | $2.17 | $2.02 | $1.908 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1986716-8 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | TERM BLOCK PLUG 8POS 90DEG 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18163 pcs | Data sheet | 3.5mm Spring Type Flush Mount Plug1986716 Drawing |
| Category | Connectors, Interconnects | Wire Strip Length | 8.5-10mm |
| Wire Gauge or Range - mm² | 0.5-1.3mm² | Wire Gauge or Range - AWG | 16-20 AWG |
| Voltage - UL | 150V | Type | Plug for Unshrouded Header |
| Torque - Screw | - | Termination Style | Screwless - Leg Spring, Push-In Spring |
| Series | - | Screw Size | - |
| Positions Per Level | 8 | Plug Wire Entry | 90° |
| Pitch | 0.138" (3.50mm) | Packaging | Bulk |
| Other Names | 19867168 A104642 |
Operating Temperature | -40°C ~ 110°C |
| Number of Positions | 8 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 21 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.492" (12.50mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | Push Button Actuated, Side Stacking |
| Detailed Description | 8 Position Terminal Block Plug for Unshrouded Header 0.138" (3.50mm) 90° Free Hanging (In-Line) | Current - UL | 2A |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Steel, Stainless |
| Color | Green |
