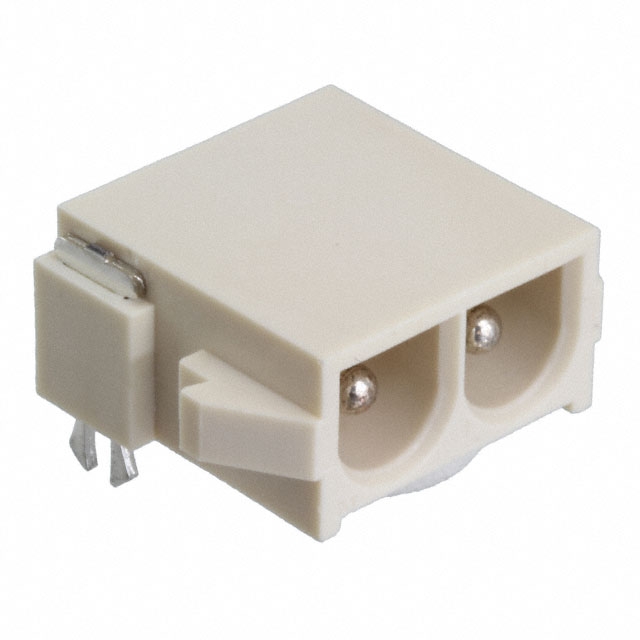

1982101-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1982101-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1982101-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1982101-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | SOCKET HEADER |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Reference Price (In US Dollars) | 10000 pcs | ||||
|---|---|---|---|---|---|
| $1.074 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1982101-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | SOCKET HEADER | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Quantity Available | 29153 pcs | Data sheet | Universal MATE-N-LOK Instr Sheet1982101 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Universal MATE-N-LOK |
| Row Spacing - Mating | - | Pitch - Mating | 0.250" (6.35mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A117373 | Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled | Insulation Height | 0.311" (7.90mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | Board Lock | Fastening Type | Locking Ramp |
| Detailed Description | Connector Header Through Hole, Right Angle 2 position 0.250" (6.35mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Copper | Contact Length - Post | 0.157" (4.00mm) |
| Contact Length - Mating | 0.343" (8.70mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 196.9µin (5.00µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Silver | Connector Type | Header |
| Applications | General Purpose |
