1981823-1

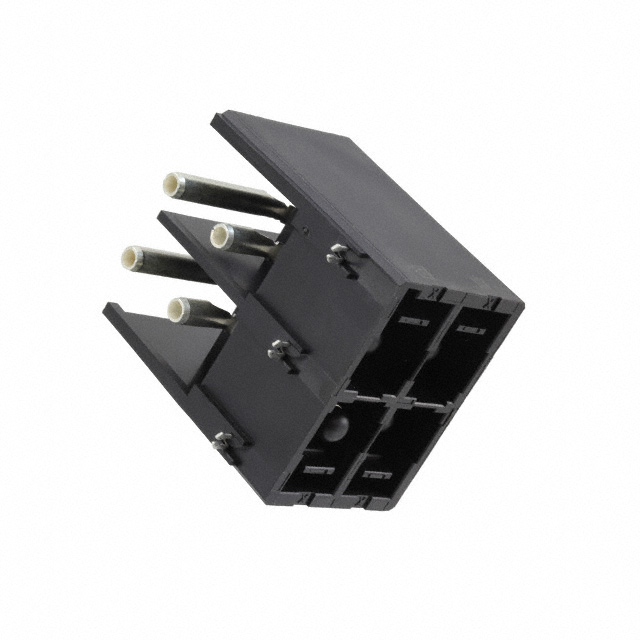

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1981823-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1981823-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1981823-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | DYNAMIC D7100 HDR ASSY H 4P SQ |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 18 pcs | 108 pcs | 504 pcs | |
|---|---|---|---|---|---|
| $5.866 | $5.447 | $4.19 | $3.827 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1981823-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | DYNAMIC D7100 HDR ASSY H 4P SQ | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9673 pcs | Data sheet | 1981823 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 630V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Dynamic D-7100 |
| Row Spacing - Mating | 0.630" (16.00mm) | Pitch - Mating | 0.630" (16.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A119665 | Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Polyester, Glass Filled |
| Insulation Height | 1.378" (35.00mm) | Insulation Color | - |
| Ingress Protection | IP20 | Features | Board Lock |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole, Right Angle 4 position 0.630" (16.00mm) |
| Current Rating | 65A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.181" (4.60mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Silver |
| Connector Type | Header | Applications | General Purpose, Industrial |
