1977276-2

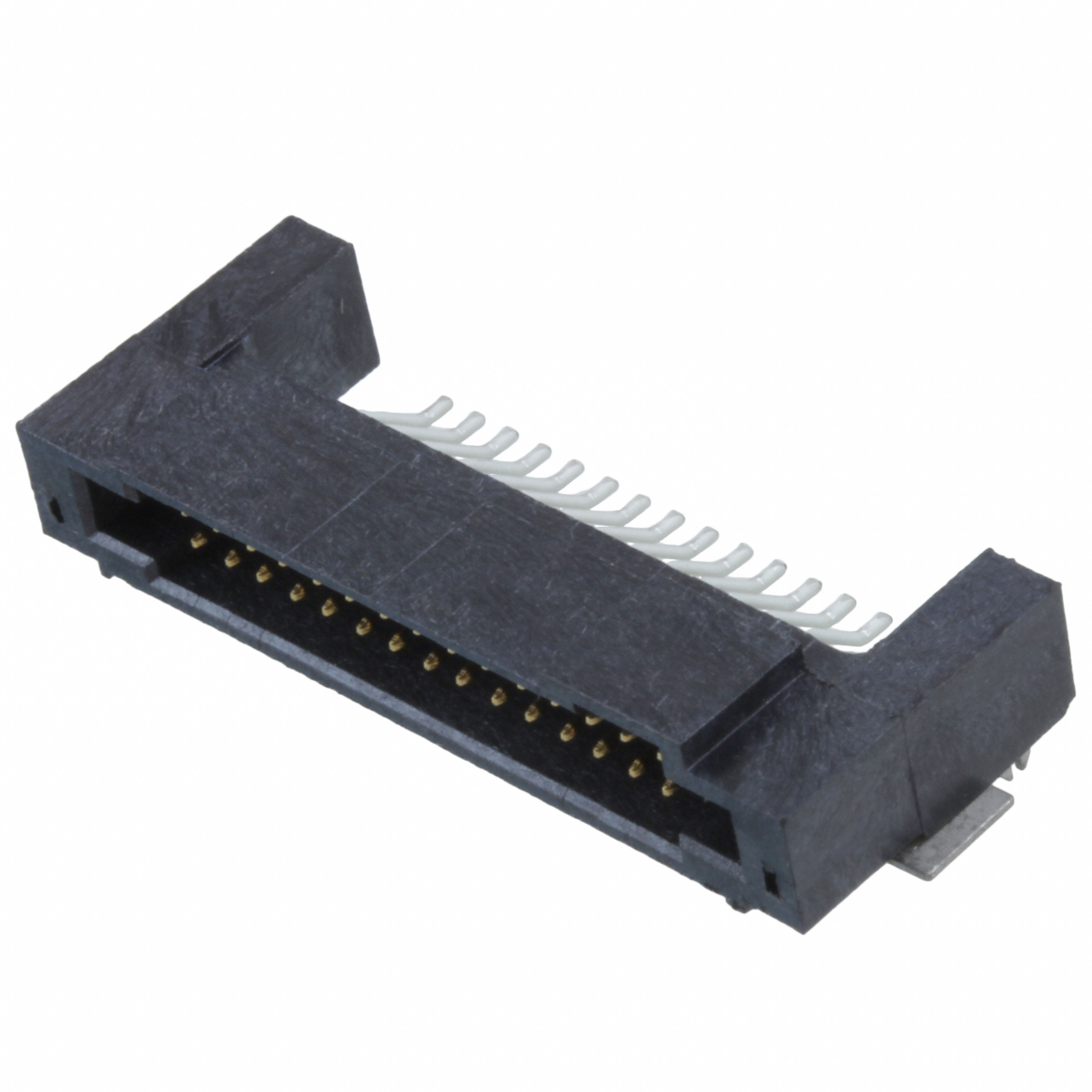

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1977276-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1977276-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1977276-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 30 50/50 GRID RA HDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $2.735 | $2.621 | $2.165 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1977276-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 30 50/50 GRID RA HDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17561 pcs | Data sheet | 1977276 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 30VAC |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | AMPMODU 50/50 Grid |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | A119748CT | Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 30 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 19 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.213" (5.40mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock, Solder Retention |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount, Right Angle 30 position 0.050" (1.27mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Medical, Military, Telecommunications |
