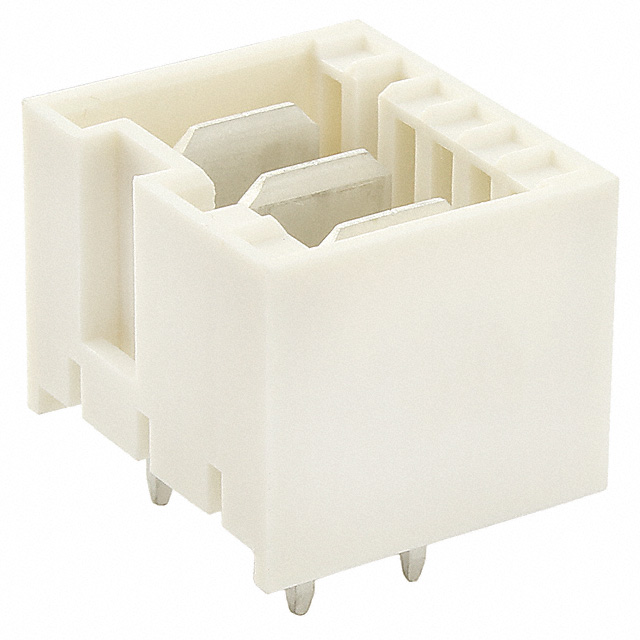

1971845-3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1971845-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1971845-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1971845-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RAST 5 HDR ASSY 3POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.326 | $0.287 | $0.248 | $0.203 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.18 | $0.158 | $0.15 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1971845-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RAST 5 HDR ASSY 3POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 154666 pcs | Data sheet | 1971845, 1846, 1895, 1896 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | - |
| Row Spacing - Mating | - | Pitch - Mating | 0.197" (5.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A115890 | Operating Temperature | -40°C ~ 120°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.504" (12.80mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide, Glow Wire Compliant |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 3 position 0.197" (5.00mm) |
| Current Rating | - | Contact Type | Tab |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose |
