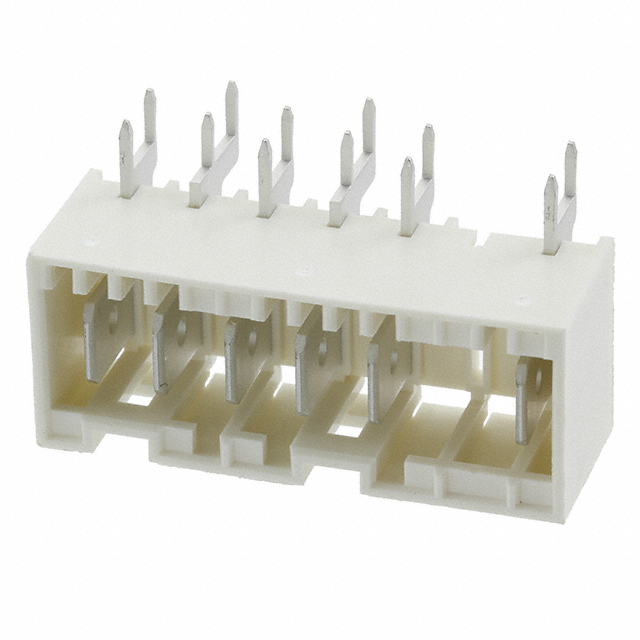

1955660-7
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1955660-7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1955660-7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1955660-7 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RAST 5,HSG,7P,RIGHT ANGLE, GWT |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.973 | $0.934 | $0.779 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.662 | $0.565 | $0.506 | |||
- Product parameter
Product parameter
| Part Number | 1955660-7 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RAST 5,HSG,7P,RIGHT ANGLE, GWT | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Quantity Available | 67616 pcs | Data sheet | |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | - |
| Row Spacing - Mating | - | Pitch - Mating | 0.197" (5.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A117343 | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | 6 |
| Number of Positions | 7 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-2 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.587" (14.91mm) | Insulation Color | - |
| Ingress Protection | - | Features | Glow Wire Compliant |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole, Right Angle 7 position 0.197" (5.00mm) |
| Current Rating | - | Contact Type | Tab |
| Contact Shape | Rectangular | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) | Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose |
