194014-1

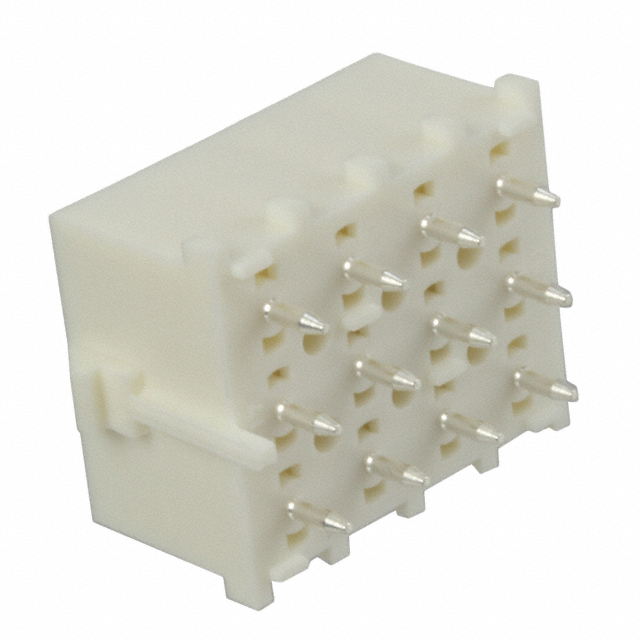

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 194014-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 194014-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 194014-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN PIN HEADER VERT MATE-N-LOK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $9.669 | $8.729 | $7.579 | $6.951 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 194014-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN PIN HEADER VERT MATE-N-LOK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5422 pcs | Data sheet | 194014 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | MATE-N-LOK II |
| Row Spacing - Mating | 0.250" (6.35mm) | Pitch - Mating | 0.250" (6.35mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 1940141 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.550" (13.97mm) | Insulation Color | - |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 12 position 0.250" (6.35mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.145" (3.68mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 200.0µin (5.08µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Silver |
| Connector Type | Header | Applications | General Purpose |
