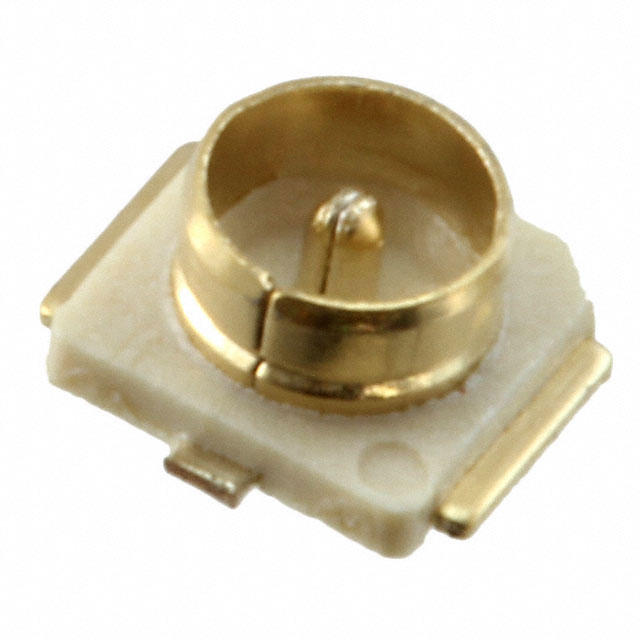

1909763-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1909763-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1909763-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1909763-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN UMCC JACK STR 50OHM SMD |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | 10000 pcs | 15000 pcs | 25000 pcs | |
|---|---|---|---|---|---|
| $0.073 | $0.068 | $0.067 | $0.065 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1909763-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN UMCC JACK STR 50OHM SMD | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Quantity Available | 360035 pcs | Data sheet | 1909763 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 60V |
| Shield Termination | Solder | Series | - |
| Packaging | Tape & Reel (TR) | Other Names | A118077TR |
| Operating Temperature | -40°C ~ 90°C | Number of Ports | 1 |
| Mounting Type | Surface Mount | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 30 |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Insertion Loss | 0.24dB | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Housing Color | Ivory | Frequency - Max | 6GHz |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Liquid Crystal Polymer (LCP) | Detailed Description | Ultra Miniature Coaxial Connector Jack, Male Pin 50 Ohm Surface Mount Solder |
| Contact Termination | Solder | Connector Type | Jack, Male Pin |
| Connector Style | Ultra Miniature Coaxial | Center Contact Plating | Gold |
| Center Contact Material | Copper Alloy | Cable Group | - |
| Body Material | Copper Alloy | Body Finish | Gold |
