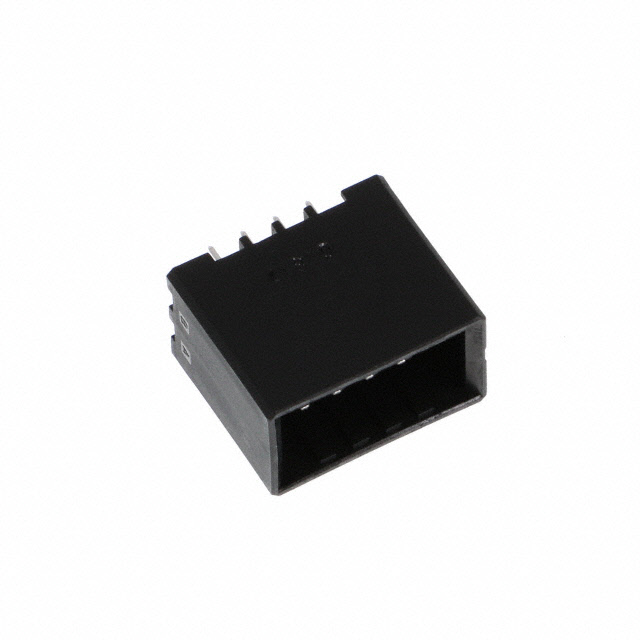

1903601-5
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1903601-5 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1903601-5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1903601-5 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | DYNAMIC D-3100D V-HDR ASSY 8P TI |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.882 | $0.799 | $0.75 | $0.717 | $0.685 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.619 | $0.571 | $0.489 | $0.456 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1903601-5 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | DYNAMIC D-3100D V-HDR ASSY 8P TI | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 83605 pcs | Data sheet | 1903601 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Dynamic D-3100 |
| Row Spacing - Mating | 0.200" (5.08mm) | Pitch - Mating | 0.150" (3.81mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 1903601-5-ND A128302 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 27 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Polyester, Glass Filled |
| Insulation Height | 0.850" (21.59mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole 8 position 0.150" (3.81mm) |
| Current Rating | - | Contact Type | Tab |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.150" (3.81mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial |
