1838275-1

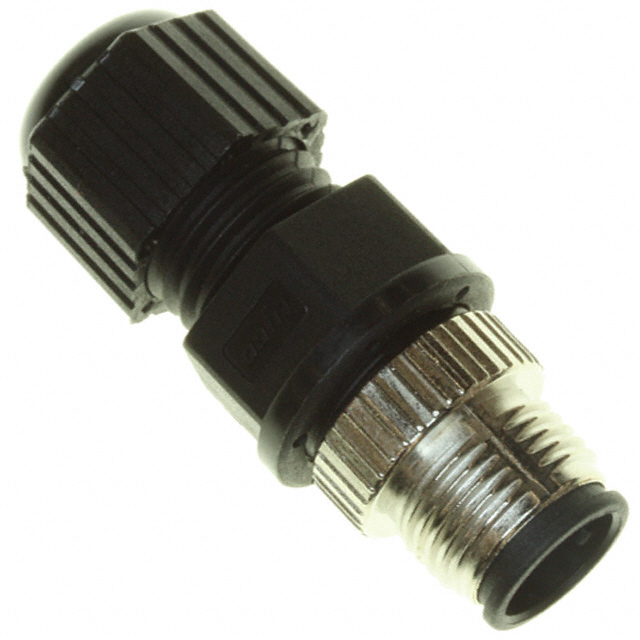

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1838275-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1838275-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1838275-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN PLUG MALE 3POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.478 | $4.072 | $3.971 | $3.665 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.462 | $3.156 | $2.952 | $2.708 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1838275-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN PLUG MALE 3POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11809 pcs | Data sheet | 1838275 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC/DC |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | M12-3 |
| Shell Material | Polyamide (PA), Nylon, Glass Filled | Shell Finish | - |
| Series | M12 | Packaging | Bulk |
| Other Names | 18382751 A97643 |
Orientation | Keyed |
| Operating Temperature | -25°C ~ 90°C | Number of Positions | 3 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - | Fastening Type | Threaded |
| Detailed Description | 3 Position Circular Connector Plug, Male Pins Solder Cup Gold | Current Rating | 5A |
| Contact Finish Thickness - Mating | 5.90µin (0.150µm) | Contact Finish - Mating | Gold |
| Connector Type | Plug, Male Pins | Cable Opening | - |
| Backshell Material, Plating | - |
