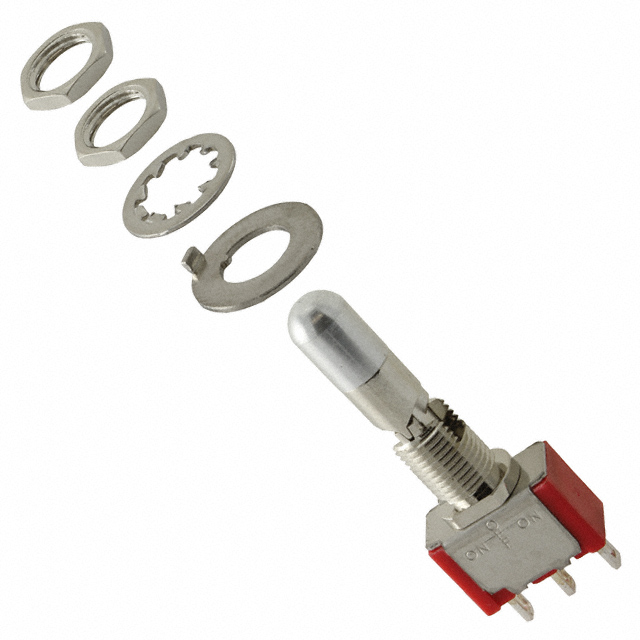

1825137-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1825137-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1825137-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1825137-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | SWITCH TOGGLE SPDT 5A 120V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $1.718 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1825137-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | SWITCH TOGGLE SPDT 5A 120V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21756 pcs | Data sheet | 1825137 Drawing |
| Category | Switches | Voltage Rating - DC | 28V |
| Voltage Rating - AC | 120V | Termination Style | Solder Lug |
| Switch Function | On-Off-On | Series | Gemini A |
| Panel Cutout Dimensions | Circular - 6.35mm Dia | Packaging | Bulk |
| Other Names | 1825137-1-ND 18251371 A103KZQ04 A112857 |
Operating Temperature | -30°C ~ 85°C |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | Epoxy Sealed Terminals |
| Electrical Life | 6,000 Cycles | Detailed Description | Toggle Switch SPDT Panel Mount |
| Current Rating | 5A (AC/DC) | Circuit | SPDT |
| Bushing Thread | 1/4-40 | Actuator Type | Locking Lever |
| Actuator Material | Brass, Nickel Plated | Actuator Length | 16.51mm |
