1825059-5

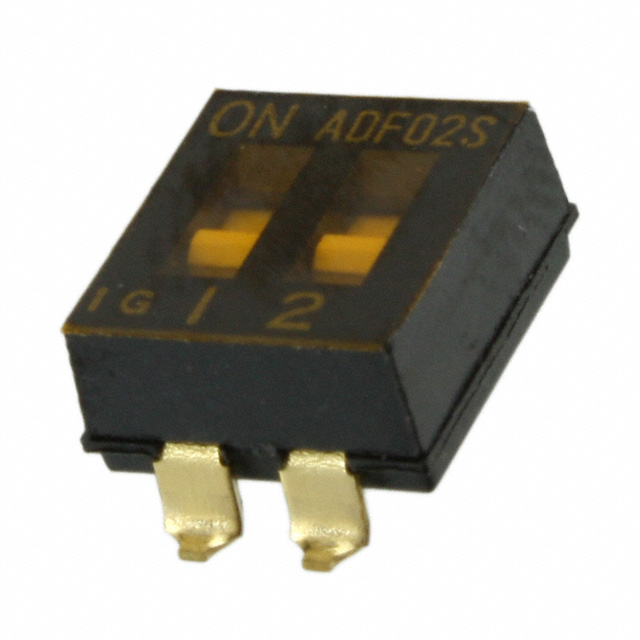

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1825059-5 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1825059-5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1825059-5 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | SWITCH SLIDE DIP SPST 100MA 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 60 pcs | 120 pcs |
|---|---|---|---|---|---|
| $0.457 | $0.448 | $0.422 | $0.397 | $0.379 | |
| 300 pcs | 540 pcs | 1020 pcs | 5040 pcs | ||
| $0.362 | $0.328 | $0.302 | $0.246 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1825059-5 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | SWITCH SLIDE DIP SPST 100MA 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 97125 pcs | Data sheet | 1825059 Drawing |
| Category | Switches | Washable | Yes |
| Voltage Rating | 24VDC | Termination Style | Gull Wing |
| Series | ADF | Pitch | 0.100" (2.54mm), Full |
| Packaging | Tube | Other Names | ADF02ST04 ADF02ST04-ND |
| Operating Temperature | -30°C ~ 85°C | Number of Positions | 2 |
| Mounting Type | Surface Mount | Mechanical Life | 1,000 Cycles |
| Manufacturer Standard Lead Time | 4 Weeks | Length | 0.278" (7.06mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Above Board | 0.177" (4.50mm) |
| Features | Tape Seal | Electrical Life | 1,000 Cycles |
| Detailed Description | Dip Switch SPST 2 Position Surface Mount Slide (Standard) Actuator 100mA 24VDC | Current Rating | 100mA |
| Contact Material | Copper Alloy | Contact Finish | Gold |
| Circuit | SPST | Body Material | Polyphenylene Sulfide (PPS) |
| Actuator Type | Slide (Standard) | Actuator Level | Flush, Recessed |
