179843-1

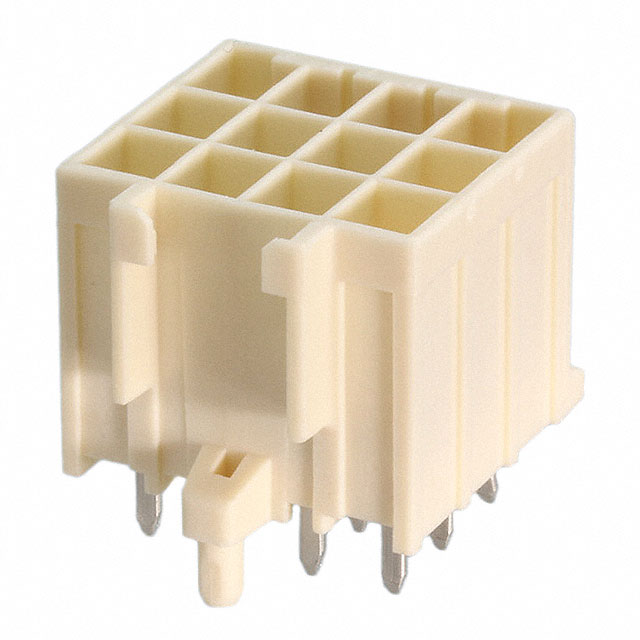

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 179843-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 179843-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 179843-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER TAB 12POS VERT .156 |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 182 pcs | ||
|---|---|---|---|---|---|
| $1.24 | $1.191 | $0.993 | |||
| 546 pcs | 1092 pcs | 5096 pcs | |||
| $0.844 | $0.72 | $0.645 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 179843-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER TAB 12POS VERT .156 | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Quantity Available | 48110 pcs | Data sheet | 179843 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Power Double Lock |
| Row Spacing - Mating | 0.181" (4.60mm) | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 179843-1-ND A114986 |
Operating Temperature | -30°C ~ 105°C |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.575" (14.60mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 12 position 0.156" (3.96mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Tab |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.150" (3.81mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose |
