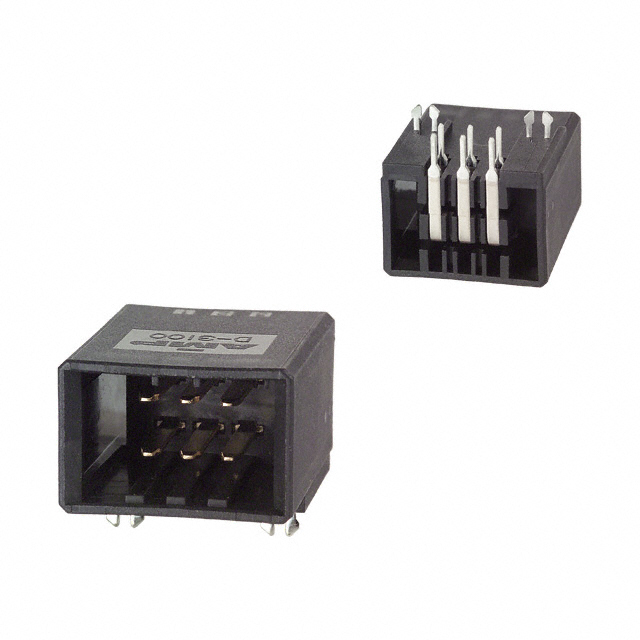

178303-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 178303-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 178303-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 178303-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HDR 6POS DUAL R/A 15GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 23 pcs | 115 pcs | ||
|---|---|---|---|---|---|
| $0.976 | $0.884 | $0.758 | |||
| 506 pcs | 1012 pcs | 5014 pcs | |||
| $0.631 | $0.541 | $0.48 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 178303-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HDR 6POS DUAL R/A 15GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 69917 pcs | Data sheet | 178303 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Dynamic D-3100 |
| Row Spacing - Mating | 0.200" (5.08mm) | Pitch - Mating | 0.150" (3.81mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A29467 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Polyester, Glass Filled |
| Insulation Height | 0.568" (14.43mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole, Right Angle 6 position 0.150" (3.81mm) |
| Current Rating | - | Contact Type | Tab |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.150" (3.81mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | General Purpose, Industrial |
