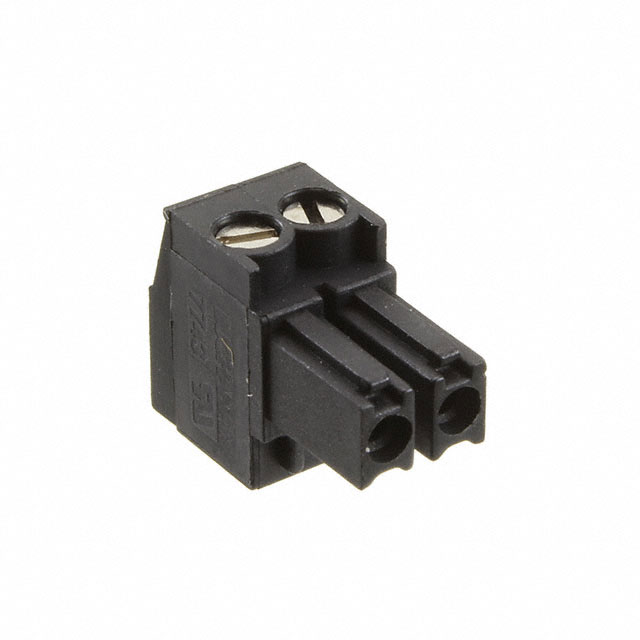

1776242-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1776242-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1776242-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1776242-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | TERM BLOCK PLUG 2POS STR 3.5MM |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.62 | $0.437 | $0.407 | $0.37 | $0.368 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.311 | $0.294 | $0.262 | $0.213 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1776242-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | TERM BLOCK PLUG 2POS STR 3.5MM | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Quantity Available | 103552 pcs | Data sheet | 1776242 Drawing |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | 0.05-2mm² | Wire Gauge or Range - AWG | 14-30 AWG |
| Type | Plug, Female Sockets | Torque - Screw | - |
| Termination Style | Screw - Rising Cage Clamp | Series | - |
| Screw Size | M2 | Positions Per Level | 2 |
| Plug Wire Entry | 180° | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | A107670 |
| Operating Temperature | - | Number of Positions | 2 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 21 Weeks | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Insulation Height | 0.437" (11.10mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA66), Nylon 6/6 | Header Orientation | - |
| Features | - | Detailed Description | 2 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line) |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Phosphor Bronze |
| Color | Black |
