177537-7

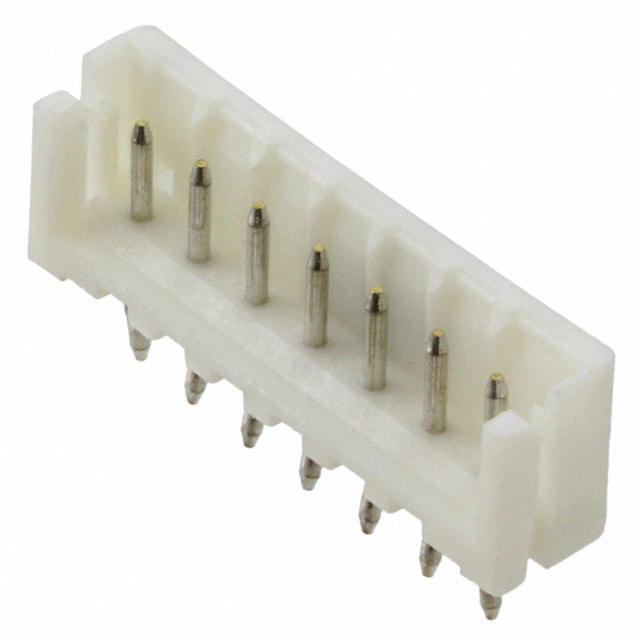

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 177537-7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 177537-7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 177537-7 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 7POS VERT 2.5MM T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 16000 pcs | ||||
|---|---|---|---|---|---|
| $0.056 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 177537-7 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 7POS VERT 2.5MM T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 374564 pcs | Data sheet | 177537 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Press-Fit, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 3 Wall | Series | MIS |
| Row Spacing - Mating | - | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 177537-7-ND A112756 |
Operating Temperature | -25°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 7 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.255" (6.48mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole 7 position 0.098" (2.50mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | 0.125" (3.18mm) | Contact Length - Mating | 0.134" (3.39mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose |
