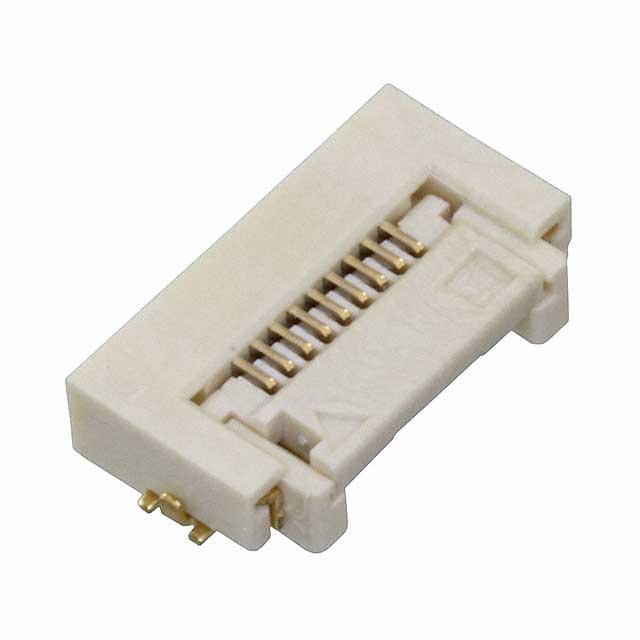

1775333-9
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1775333-9 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1775333-9 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1775333-9 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN FPC BOTTOM 9POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.203 | $0.191 | $0.172 | $0.153 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.147 | $0.134 | $0.128 | $0.105 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1775333-9 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN FPC BOTTOM 9POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 201069 pcs | Data sheet | 1775333 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Series | - |
| Pitch | 0.020" (0.50mm) | Packaging | Cut Tape (CT) |
| Other Names | A120418CT | Operating Temperature | -20°C ~ 85°C |
| Number of Positions | 9 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 15 Weeks |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP) | Housing Color | Natural |
| Height Above Board | 0.081" (2.05mm) | Flat Flex Type | FPC |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 9 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 50.0µin (1.27µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Straight | Actuator Material | Liquid Crystal Polymer (LCP) |
| Actuator Color | Natural |
