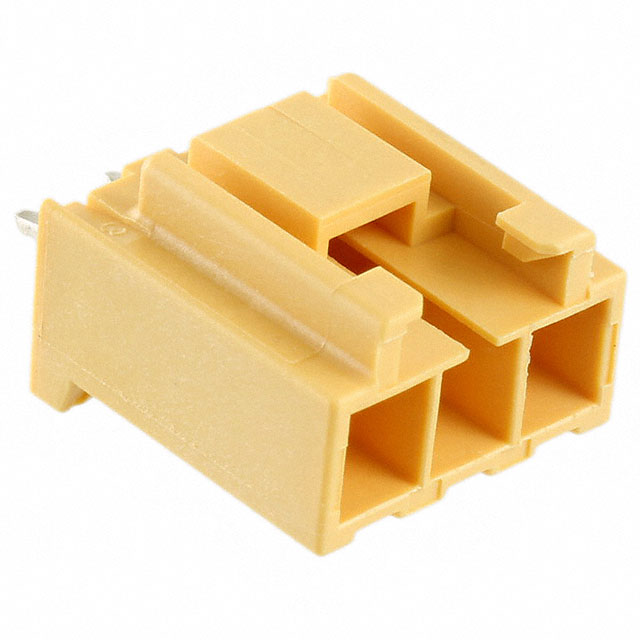

176976-4
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 176976-4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 176976-4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 176976-4 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | AMP UNIVERSAL POWER PLG 2C PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.174 | $0.163 | $0.125 | $0.108 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.089 | $0.079 | $0.073 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 176976-4 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | AMP UNIVERSAL POWER PLG 2C PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 270685 pcs | Data sheet | 176976 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Universal Power |
| Row Spacing - Mating | - | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A119032 | Operating Temperature | -30°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Insulation Height | 0.551" (14.00mm) | Insulation Color | Yellow |
| Ingress Protection | - | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 3 position 0.156" (3.96mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Tab |
| Contact Shape | Rectangular | Contact Material | Brass |
| Contact Length - Post | 0.150" (3.81mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose |
