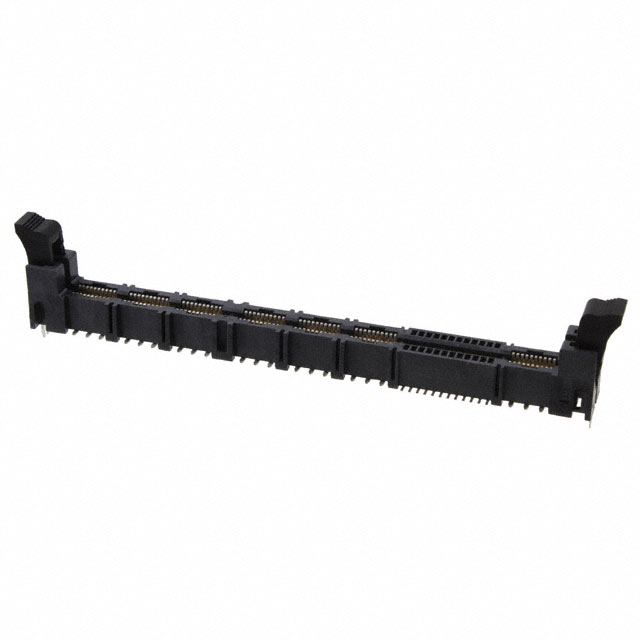

1766735-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1766735-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1766735-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1766735-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN EDGE DUAL FMALE 38POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 26 pcs | 104 pcs | 520 pcs | 1014 pcs |
|---|---|---|---|---|---|
| $5.415 | $4.799 | $4.184 | $3.568 | $3.273 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1766735-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN EDGE DUAL FMALE 38POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9132 pcs | Data sheet | 1766735 Drawing |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | Mini Crown Edge, Elcon | Read Out | Dual |
| Pitch | - | Packaging | Tray |
| Other Names | A107794 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | - |
| Number of Positions | 38 (24 + 14 Power) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Thermoplastic |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gender | Female | Flange Feature | - |
| Features | Board Lock, Latches | Contact Type | - |
| Contact Material | Copper Alloy | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Color | Black |
| Card Type | Non Specified - Dual Edge | Card Thickness | 0.062" (1.57mm) |
