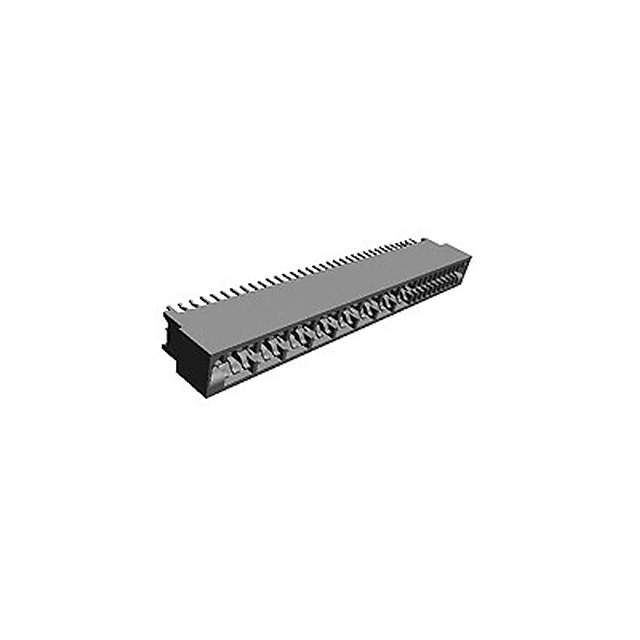

1761786-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1761786-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1761786-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1761786-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN EDGE DUAL FMALE 20POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 36 pcs | 72 pcs | 108 pcs |
|---|---|---|---|---|---|
| $2.156 | $2.069 | $1.896 | $1.81 | $1.724 | |
| 252 pcs | 504 pcs | 1008 pcs | 2520 pcs | ||
| $1.508 | $1.465 | $1.25 | $1.164 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1761786-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN EDGE DUAL FMALE 20POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32708 pcs | Data sheet | 1761786 DrawingCard Edge Products Catalog |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Series | Standard Edge II | Read Out | Dual |
| Pitch | - | Packaging | Tray |
| Other Names | 1761786-1-ND A123115 |
Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | 1; 1; 1; 1; 6 |
| Number of Positions | 20 (12 + 8 Power) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Polyester, Glass Filled |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gender | Female | Flange Feature | - |
| Features | - | Contact Type | - |
| Contact Material | Copper Alloy | Contact Finish Thickness | 15.0µin (0.38µm) |
| Contact Finish | Gold | Color | Black |
| Card Type | Non Specified - Dual Edge | Card Thickness | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) |
