1761609-7
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1761609-7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1761609-7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1761609-7 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |

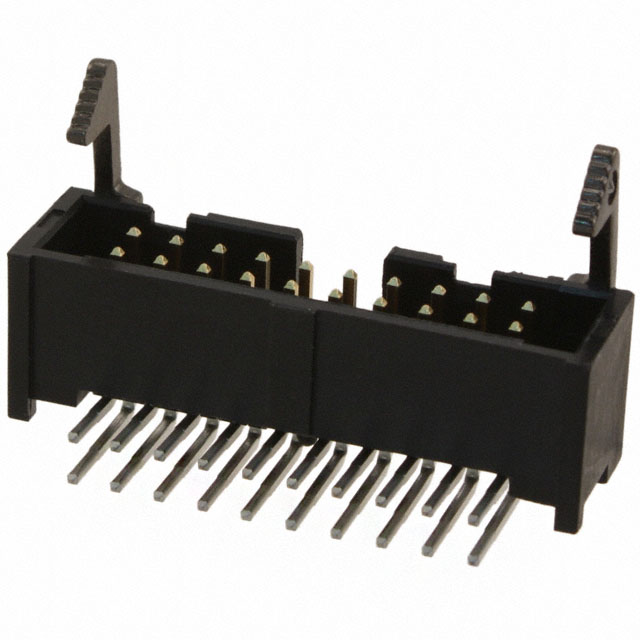

| Description | CONN HEADER PIN 20POS R/A .100 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 16 pcs | 112 pcs | 512 pcs | 1008 pcs |
|---|---|---|---|---|---|
| $2.198 | $2.105 | $1.739 | $1.465 | $1.281 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1761609-7 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER PIN 20POS R/A .100 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24099 pcs | Data sheet | 1761609 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | AMP-Latch |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 1761609-7-ND 17616097 A101790 |
Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 31 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.362" (9.20mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Latch Lock/Eject Hooks, Short | Detailed Description | Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm) |
| Current Rating | 1A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.102" (2.60mm) | Contact Length - Mating | 0.237" (6.02mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold or Gold-Palladium |
| Connector Type | Header | Applications | - |
