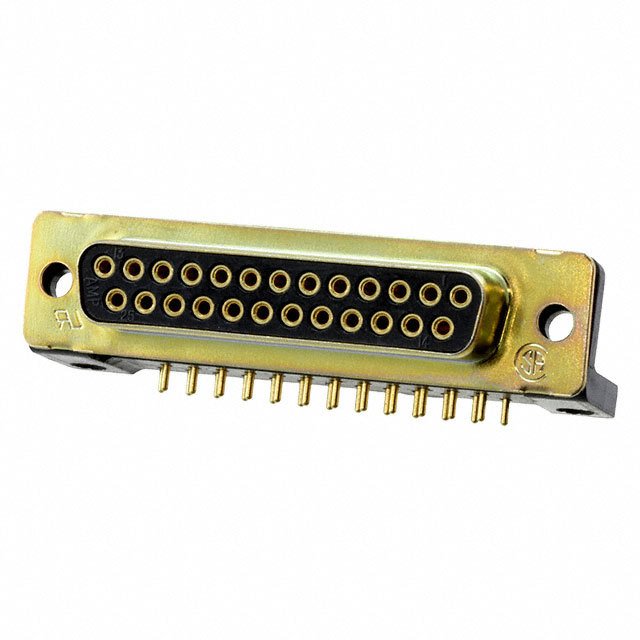

1757836-3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1757836-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1757836-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1757836-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN D-SUB RCPT 25POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $10.149 | $9.161 | $8.777 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $8.229 | $7.954 | $7.515 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1757836-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN D-SUB RCPT 25POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4683 pcs | Data sheet | 1757836 |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 3 (DB, B) | Shell Material, Finish | Steel, Yellow Chromate Plated Zinc |
| Series | Military, MIL-DTL-24308, AMPLIMITE 109 | Packaging | Bulk |
| Other Names | 1122-1301 1757836-3-MIL 1757836-3-ND M24308/23-27 M24308/23-27-MIL M24308/23-27-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 25 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | - | Flange Feature | Housing/Shell (Unthreaded) |
| Features | - | Detailed Description | 25 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 5A | Contact Type | Signal |
| Contact Material | Brass | Contact Form | - |
| Contact Finish Thickness | 10.0µin (0.25µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | 0.318" (8.08mm) |
