1747049-1

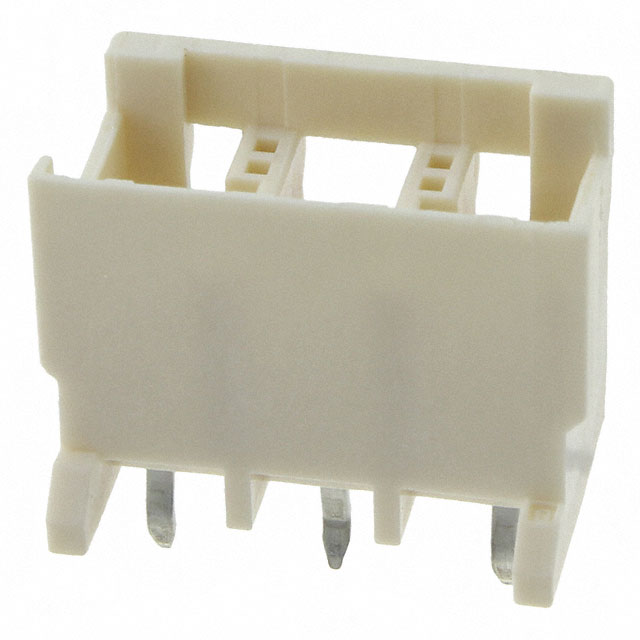

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1747049-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1747049-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1747049-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONNECTOR 6.5 3POS HEADER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.269 | $0.236 | $0.204 | $0.167 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.148 | $0.13 | $0.123 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1747049-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONNECTOR 6.5 3POS HEADER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 196042 pcs | Data sheet | 1747049 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 300VAC |
| Termination | Press-Fit, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Grace Inertia, GIC |
| Row Spacing - Mating | - | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Operating Temperature | -30°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 3 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled | Insulation Height | 0.571" (14.50mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole 3 position 0.098" (2.50mm) | Current Rating | Varies by Wire Gauge |
| Contact Type | Tab | Contact Shape | Rectangular |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | General Purpose, Industrial |
