174520-1

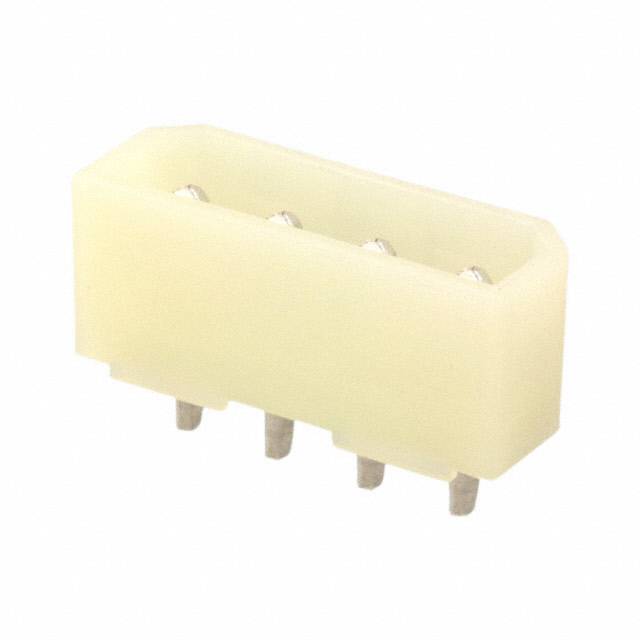

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 174520-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 174520-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 174520-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 4P CMNL PIN HDR ASSY V |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.616 | $0.559 | $0.524 | $0.502 | $0.479 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.433 | $0.399 | $0.342 | $0.319 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 174520-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 4P CMNL PIN HDR ASSY V | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Quantity Available | 75349 pcs | Data sheet | 174520 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Commercial MATE-N-LOK |
| Row Spacing - Mating | - | Pitch - Mating | 0.200" (5.08mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A116538 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.375" (9.53mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | - | Fastening Type | - |
| Detailed Description | Connector Header Through Hole 4 position 0.200" (5.08mm) | Current Rating | 12A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Copper Alloy | Contact Length - Post | 0.150" (3.81mm) |
| Contact Length - Mating | 0.181" (4.60mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | General Purpose |
