1744426-2

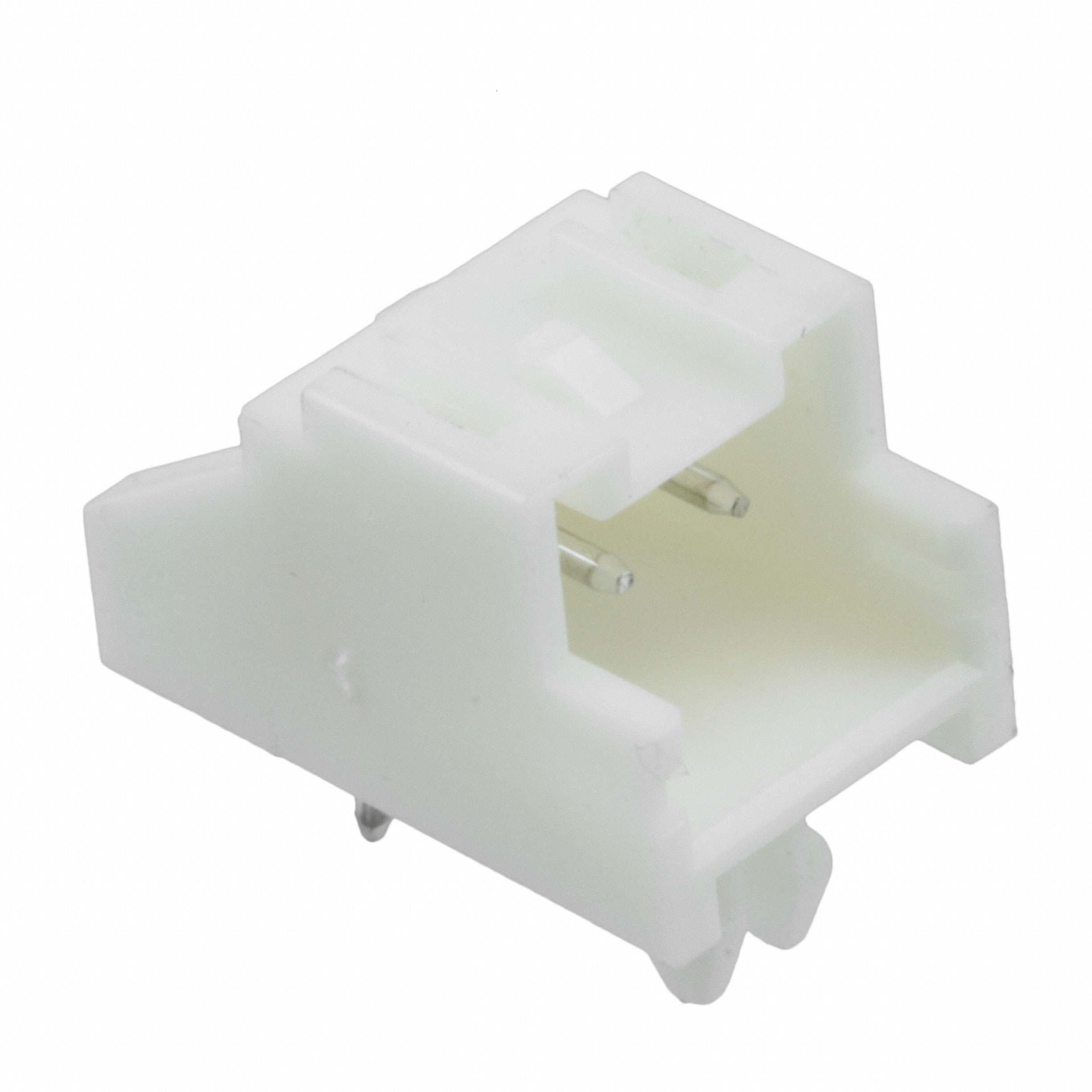

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1744426-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1744426-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1744426-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | HEADER HOUSING ASSY, EP 2.5 RA, |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.135 | $0.126 | $0.108 | $0.092 | $0.088 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.079 | $0.076 | $0.063 | $0.058 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1744426-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | HEADER HOUSING ASSY, EP 2.5 RA, | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Quantity Available | 340770 pcs | Data sheet | Economy Power Connector Series Intro Datasheet1744426 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Economy Power 2.5 |
| Row Spacing - Mating | - | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A116498 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.299" (7.60mm) | Insulation Color | White |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole, Right Angle 2 position 0.098" (2.50mm) |
| Current Rating | 4.2A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.126" (3.20mm) | Contact Length - Mating | 0.141" (3.60mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial, Lighting |
