1744337-1

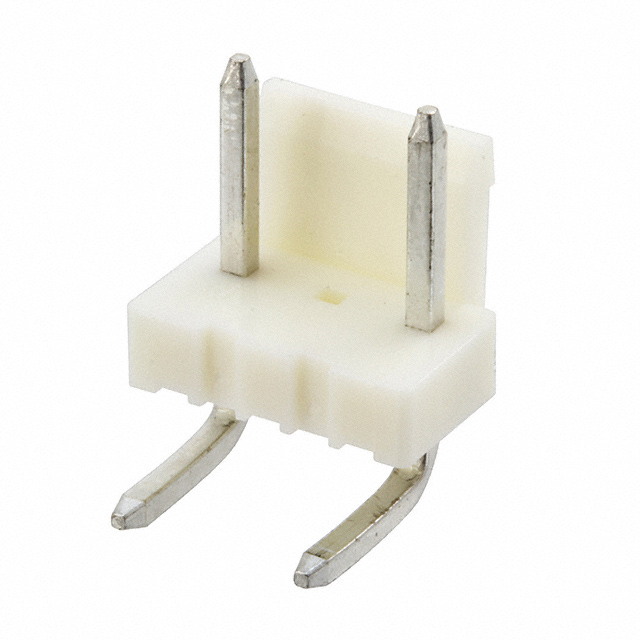

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1744337-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1744337-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1744337-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | EP HDR ASSY 3P R/A, OMIT 2 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.089 | $0.084 | $0.058 | $0.049 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.04 | $0.036 | $0.033 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1744337-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | EP HDR ASSY 3P R/A, OMIT 2 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 690853 pcs | Data sheet | 1744337 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall | Series | Economy Power |
| Row Spacing - Mating | - | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A116473 | Operating Temperature | -25°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | 2 |
| Number of Positions | 3 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.339" (8.61mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole, Right Angle 3 position 0.156" (3.96mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.142" (3.60mm) | Contact Length - Mating | 0.338" (8.59mm) |
| Contact Finish Thickness - Post | 80.0µin (2.03µm) | Contact Finish Thickness - Mating | 80.0µin (2.03µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial, Lighting |
