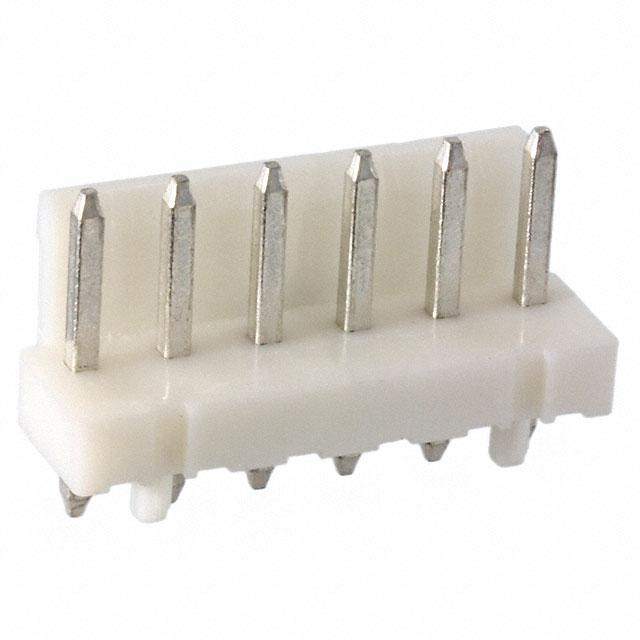

1744057-6
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1744057-6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1744057-6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1744057-6 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 6POS VERT .156 TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.145 | $0.137 | $0.096 | $0.082 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.069 | $0.059 | $0.055 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1744057-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 6POS VERT .156 TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 380547 pcs | Data sheet | 1744057 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall | Series | Economy Power |
| Row Spacing - Mating | - | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Bulk | Overall Contact Length | 0.575" (14.60mm) |
| Other Names | 1744057-6-ND A112704 |
Operating Temperature | -25°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.127" (3.22mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole 6 position 0.156" (3.96mm) |
| Current Rating | 7.5A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.145" (3.68mm) | Contact Length - Mating | 0.303" (7.70mm) |
| Contact Finish Thickness - Post | 120.0µin (3.05µm) | Contact Finish Thickness - Mating | 120.0µin (3.05µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial, Lighting |
