1744048-7

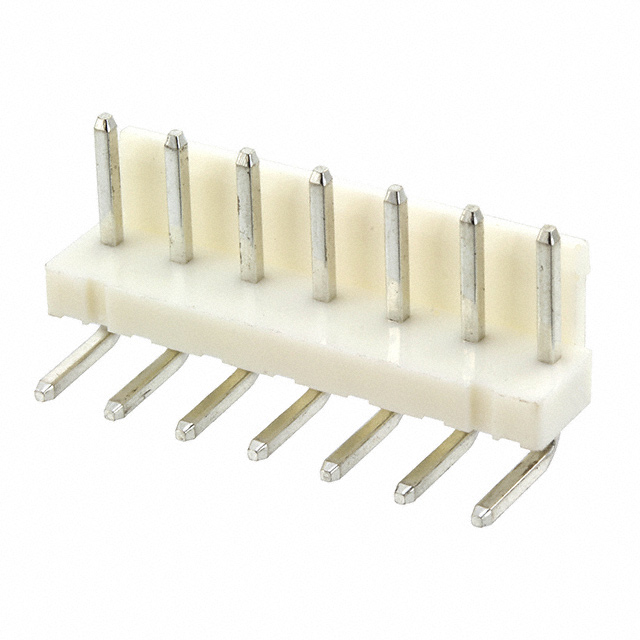

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1744048-7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1744048-7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1744048-7 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 07P EC PWR.200 CL HDR ASSY RA |
| Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | ||||
|---|---|---|---|---|---|
| $0.123 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1744048-7 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 07P EC PWR.200 CL HDR ASSY RA | Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Quantity Available | 176321 pcs | Data sheet | 1744048 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall | Series | Economy Power |
| Row Spacing - Mating | - | Pitch - Mating | 0.200" (5.08mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A116471 | Operating Temperature | -25°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 7 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.335" (8.51mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole, Right Angle 7 position 0.200" (5.08mm) |
| Current Rating | 7.5A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.142" (3.60mm) | Contact Length - Mating | 0.338" (8.59mm) |
| Contact Finish Thickness - Post | 80.0µin (2.03µm) | Contact Finish Thickness - Mating | 80.0µin (2.03µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial, Lighting |
