1744017-2

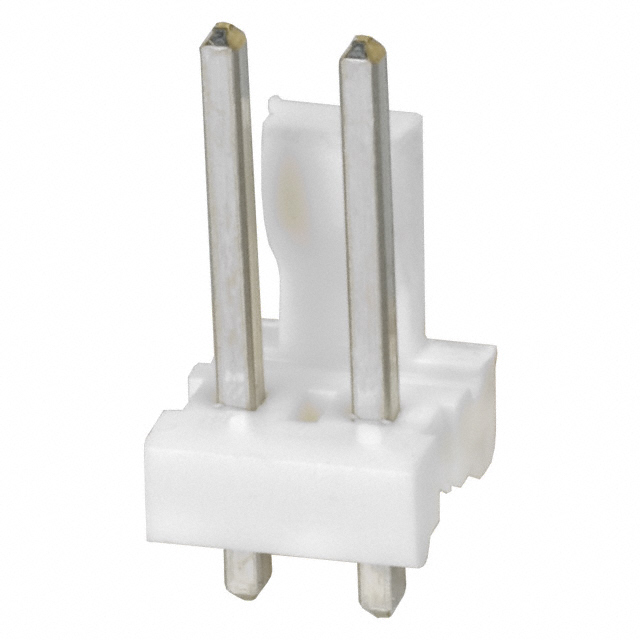

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1744017-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1744017-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1744017-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 02P MTA156 HDR ASSY FL/RET LEG |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.14 | $0.133 | $0.093 | $0.08 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.067 | $0.057 | $0.053 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1744017-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 02P MTA156 HDR ASSY FL/RET LEG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 384099 pcs | Data sheet | 1744017 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 600VAC |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall | Series | MTA-156 |
| Row Spacing - Mating | - | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Bulk | Overall Contact Length | 0.650" (16.51mm) |
| Other Names | 1744017-2-ND A128186 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Glass Filled |
| Insulation Height | 0.425" (10.80mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole 2 position 0.156" (3.96mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.125" (3.18mm) | Contact Length - Mating | 0.400" (10.16mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial |
