1734530-3

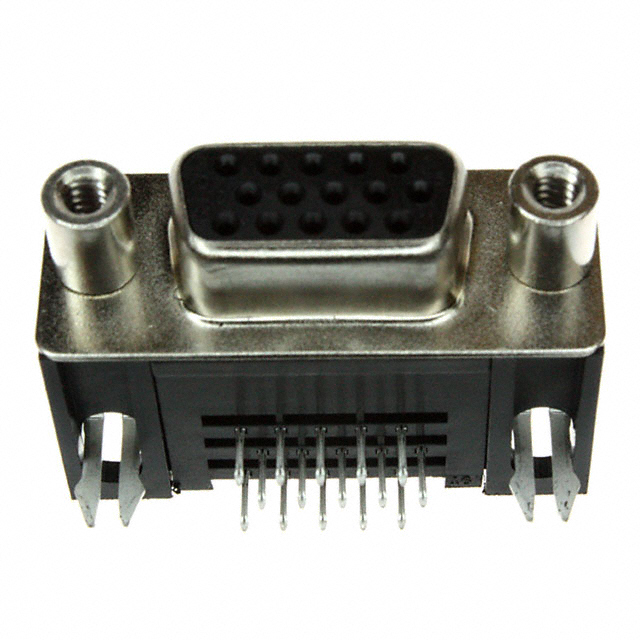

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1734530-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1734530-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1734530-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN DSUB HD RCPT 15POS R/A SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.115 | $1.07 | $0.981 | $0.936 | ||
| 100 pcs | 300 pcs | 500 pcs | |||
| $0.892 | $0.78 | $0.758 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1734530-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN DSUB HD RCPT 15POS R/A SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 51046 pcs | Data sheet | 1734530 DrawingAMPLIMITE Catalog |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 125V | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) High Density | Shell Material, Finish | Steel, Nickel Plated |
| Series | AMPLIMITE HD-22 | Packaging | Tray |
| Other Names | 17345303 A35118 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 3 | Number of Positions | 15 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Housing Material | Polyamide (PA9T), Nylon 9T |
| Flange Feature | Mating Side, Female Screwlock (4-40) | Features | Board Lock |
| Detailed Description | 15 Position D-Sub, High Density Receptacle, Female Sockets Connector | Current Rating | 2A |
| Contact Type | Signal | Contact Material | Phosphor Bronze |
| Contact Form | - | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | Receptacle, Female Sockets |
| Connector Style | D-Sub, High Density | Color | Black |
| Backset Spacing | 0.350" (8.89mm) |
