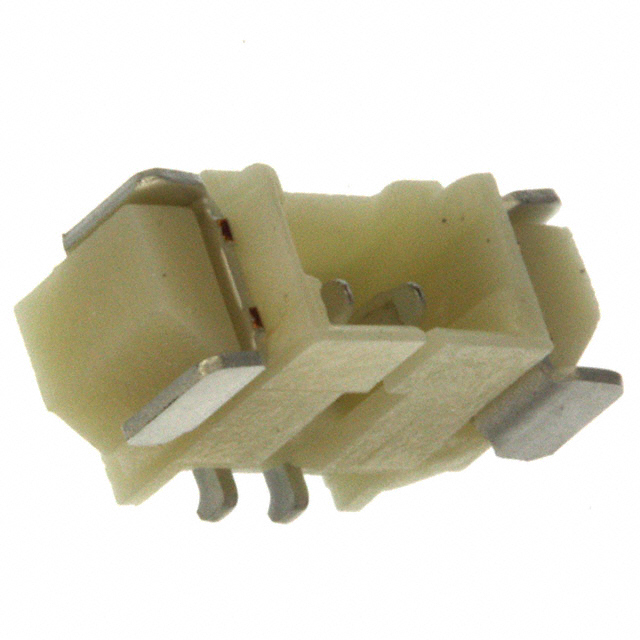

1734261-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1734261-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1734261-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1734261-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 2POS R/A SMD TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.39 | $0.344 | $0.324 | $0.31 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.297 | $0.27 | $0.243 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1734261-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 2POS R/A SMD TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 94522 pcs | Data sheet | 1734261 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 100VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | High Performance Interconnect (HPI) |
| Row Spacing - Mating | - | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | A98750CT | Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.136" (3.46mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | - | Detailed Description | Connector Header Surface Mount, Right Angle 2 position 0.049" (1.25mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical |
