172023-1

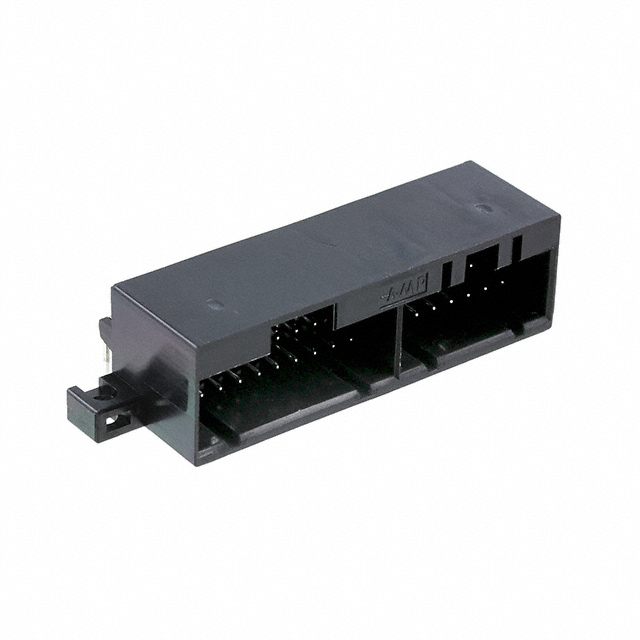

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 172023-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 172023-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 172023-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RECEPT 36POS R/A TIN .118 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1440 pcs | ||||
|---|---|---|---|---|---|
| $1.656 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 172023-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RECEPT 36POS R/A TIN .118 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20802 pcs | Data sheet | 172023 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC, 350VDC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | DLI (Dual Line Interlock) |
| Row Spacing - Mating | 0.181" (4.60mm) | Pitch - Mating | 0.118" (3.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 172023-1-ND A123102 |
Operating Temperature | -30°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 36 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 17 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.713" (18.10mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Mounting Flange |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole, Right Angle 36 position 0.118" (3.00mm) |
| Current Rating | 5A | Contact Type | Male Pin |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.157" (4.00mm) | Contact Length - Mating | 0.335" (8.51mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | - | Applications | General Purpose |
