1674000-1

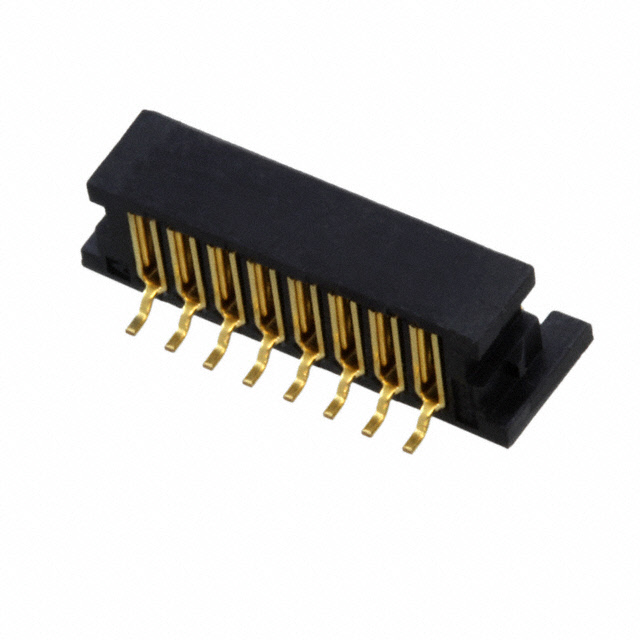

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1674000-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1674000-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1674000-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER RECEPT 8POS |
| Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.862 | $1.787 | $1.489 | $1.266 | $1.08 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1674000-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER RECEPT 8POS | Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Quantity Available | 30886 pcs | Data sheet | 1674000 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 10VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | Mini VP | Row Spacing - Mating | - |
| Pitch - Mating | 0.039" (1.00mm) | Packaging | Bulk |
| Other Names | A107645 | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Insulation Material | Polyamide (PA46), Nylon 4/6 | Insulation Height | 0.128" (3.25mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Locking Ramp |
| Detailed Description | 8 Position Header Connector 0.039" (1.00mm) Surface Mount, Right Angle Gold | Current Rating | 1A |
| Contact Type | Female Blade Socket | Contact Shape | Rectangular |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
