1658613-3

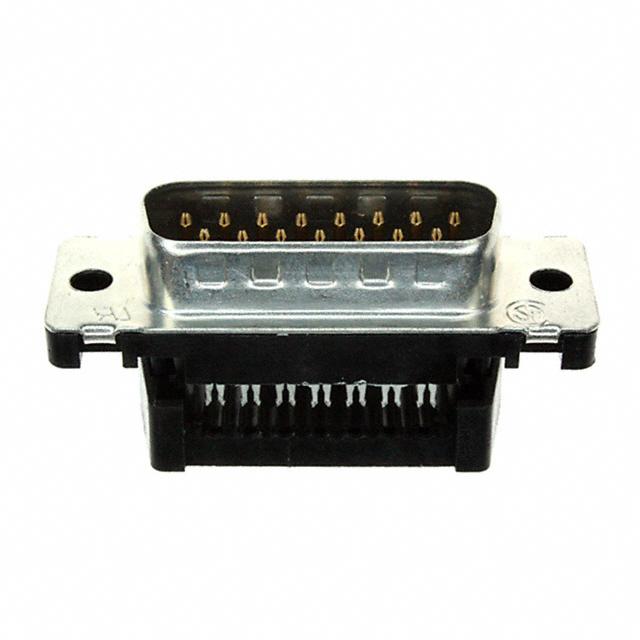

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1658613-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1658613-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1658613-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN D-SUB PLUG 15POS STR IDC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.15 | $3.012 | $2.739 | $2.602 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.533 | $2.259 | $2.122 | $1.876 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1658613-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN D-SUB PLUG 15POS STR IDC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16415 pcs | Data sheet | 1658613 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 26-28 AWG, Stranded or Solid |
| Voltage Rating | - | Termination | IDC, Ribbon Cable |
| Shell Size, Connector Layout | 2 (DA, A) | Shell Material, Finish | Steel, Tin Plated |
| Series | AMPLIMITE HDF-20 | Packaging | Bulk |
| Other Names | 16586133 AMR15B |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 15 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 19 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Thermoplastic | Flange Feature | Housing/Shell (Unthreaded) |
| Features | Feed Through, Grounding Indents | Detailed Description | 15 Position D-Sub Plug, Male Pins Connector |
| Current Rating | 1.25A | Contact Type | Signal |
| Contact Material | Phosphor Bronze | Contact Form | - |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
