165536-1

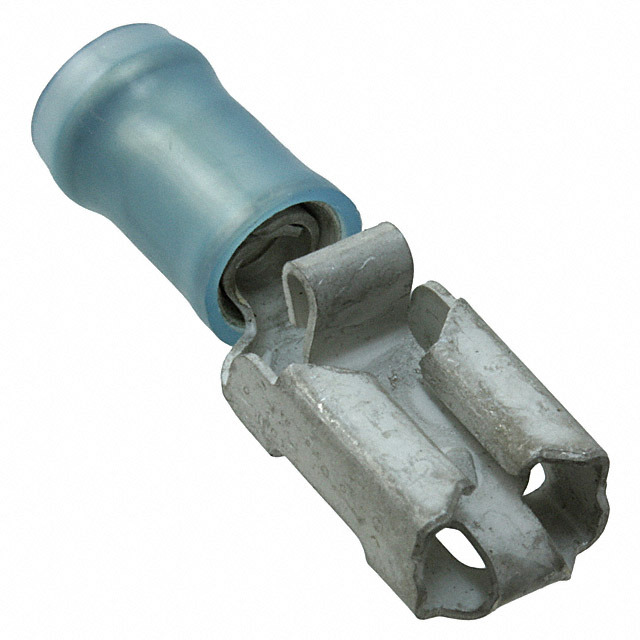

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 165536-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 165536-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 165536-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN QC RCPT 13.5-15.5AWG 0.250 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.272 | $0.238 | $0.224 | $0.215 | $0.206 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.187 | $0.168 | $0.15 | $0.14 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 165536-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN QC RCPT 13.5-15.5AWG 0.250 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 149514 pcs | Data sheet | 165536 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 13.5-15.5 AWG |
| Termination | Crimp | Terminal Type | Standard |
| Tab Width | 0.250" (6.35mm) | Tab Thickness | 0.032" (0.81mm) |
| Tab Length | - | Series | PIDG, Positive Lock EX |
| Packaging | Bulk | Other Names | 165536-1-ND 1655361 A106554 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Length - Overall | 0.957" (24.30mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Diameter | - |
| Insulation | Non-Mating End Insulated | Gender | Female |
| Features | - | Detailed Description | 0.250" (6.35mm) Quick Connect Female 13.5-15.5 AWG Crimp Connector Non-Mating End Insulated |
| Contact Material | Brass | Contact Finish | Tin |
| Color | Blue |
