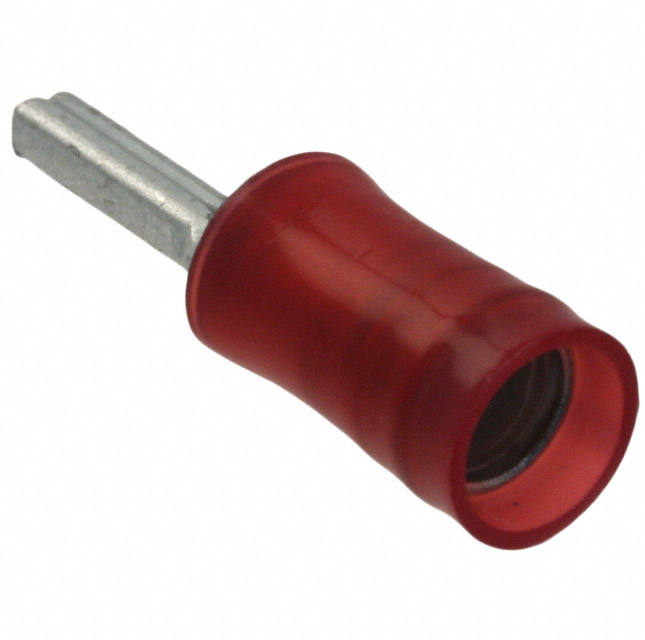

165142
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 165142 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 165142 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 165142 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN WIRE PIN TERM 16-22AWG PIDG |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.181 | $0.17 | $0.153 | $0.136 | $0.13 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.119 | $0.113 | $0.093 | $0.085 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 165142 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN WIRE PIN TERM 16-22AWG PIDG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 264117 pcs | Data sheet | 165142 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 16-22 AWG (0.2~1.6mm²) |
| Termination | Crimp | Series | PIDG |
| Pin Diameter | Circular - 0.071" (1.80mm) Dia | Packaging | Bulk |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Polyamide (PA), Nylon |
| Manufacturer Standard Lead Time | 7 Weeks | Length - Termination | - |
| Length - Pin | 0.264" (6.71mm) | Length - Overall | 0.795" (20.19mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Diameter | 0.142" (3.61mm) |
| Insulation | Insulated | Features | Serrated Termination |
| Diameter - Barrel OD | - | Diameter - Barrel ID | - |
| Detailed Description | Wire Pin Terminal Connector 16-22 AWG (0.2~1.6mm²) PIDG Crimp | Contact Material | Copper |
| Contact Finish | Tin | Color | Red |
