165015

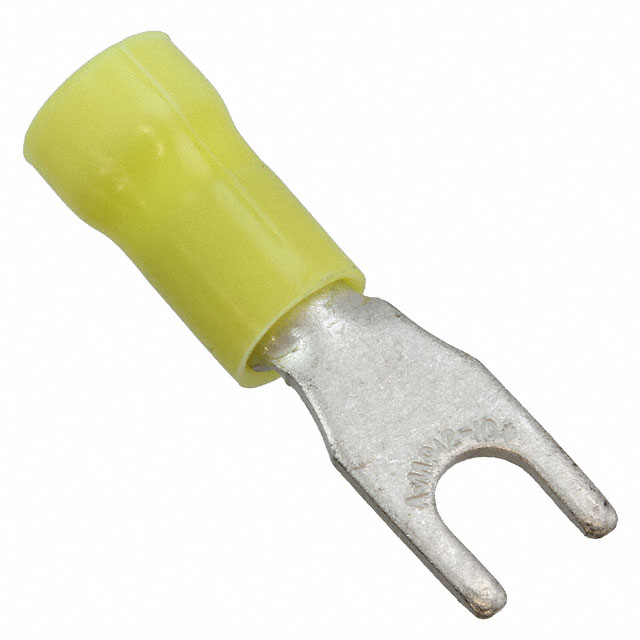

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 165015 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 165015 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 165015 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SPADE TERM 10-12AWG #8 YEL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.161 | $0.151 | $0.136 | $0.121 | $0.116 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.106 | $0.101 | $0.083 | $0.076 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 165015 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN SPADE TERM 10-12AWG #8 YEL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 291408 pcs | Data sheet | 165015 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 10-12 AWG |
| Width - Outer Edges | 0.315" (8.00mm) | Tongue Inside Opening | 0.185" (4.70mm) |
| Termination | Crimp | Terminal Type | Standard |
| Stud/Tab Size | 8 Stud | Series | PIDG |
| Packaging | Bulk | Other Names | 165015-ND A124399 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Poly-Vinyl Chloride (PVC) | Manufacturer Standard Lead Time | 17 Weeks |
| Length - Termination | 0.606" (15.39mm) | Length - Ring Center to Termination | 0.468" (11.89mm) |
| Length - Overall | 1.238" (31.45mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.150" ~ 0.252" (3.81mm ~ 6.40mm) | Insulation | Insulated |
| Features | Serrated Termination | Detailed Description | Yellow 8 Stud Spade Terminal Connector Crimp 10-12 AWG |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Yellow |
