165004

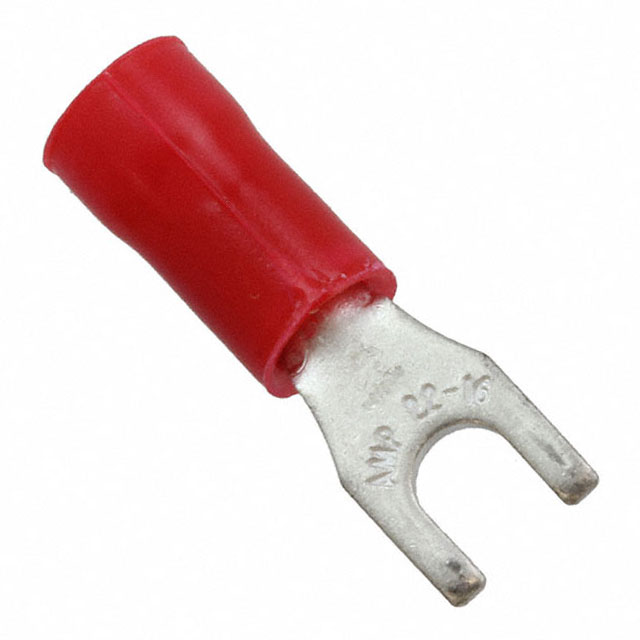

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 165004 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 165004 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 165004 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SPADE TERM 16-22AWG #4 RED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.091 | $0.086 | $0.074 | $0.065 | $0.06 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.053 | $0.051 | $0.042 | $0.038 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 165004 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN SPADE TERM 16-22AWG #4 RED | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 613903 pcs | Data sheet | 165004 |
| Category | Connectors, Interconnects | Wire Gauge | 16-22 AWG |
| Width - Outer Edges | 0.218" (5.54mm) | Tongue Inside Opening | 0.119" (3.02mm) |
| Termination | Crimp | Terminal Type | Standard |
| Stud/Tab Size | 4 Stud | Series | Plasti-Grip |
| Packaging | Bulk | Other Names | 165004-ND A121038 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 17 Weeks |
| Length - Termination | 0.406" (10.31mm) | Length - Ring Center to Termination | 0.268" (6.81mm) |
| Length - Overall | 0.784" (19.91mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.145" ~ 0.160" (3.68mm ~ 4.06mm) | Insulation | Insulated |
| Features | Serrated Termination | Detailed Description | Red 4 Stud Spade Terminal Connector Crimp 16-22 AWG |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Red |
