1645596-1

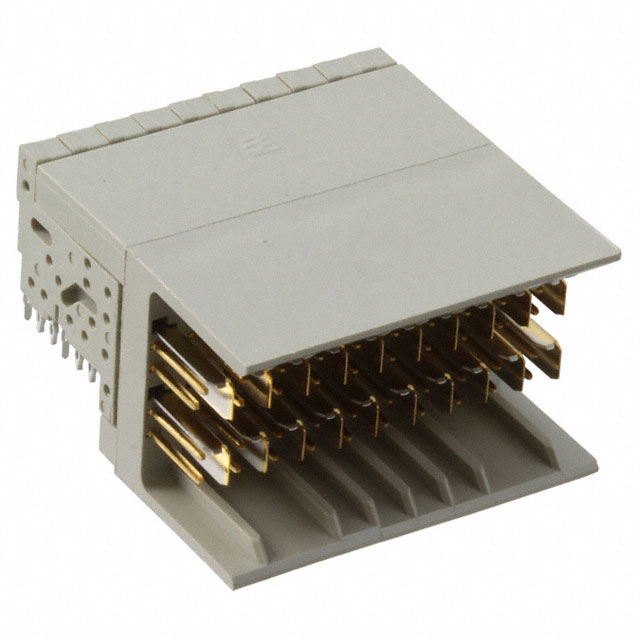

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1645596-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1645596-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1645596-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | HEADER ASSY 40POS |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Reference Price (In US Dollars) | 240 pcs | ||||
|---|---|---|---|---|---|
| $8.322 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1645596-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | HEADER ASSY 40POS | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Quantity Available | 3723 pcs | Data sheet | 1645596 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Press-Fit | Series | Z-PACK HM-Zd |
| Pitch | 0.098" (2.50mm) | Packaging | Tube |
| Other Names | A107825 | Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 4 | Number of Positions Loaded | All |
| Number of Positions | 60 | Number of Columns | 10 |
| Mounting Type | Board Edge, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant | Features | Shielded |
| Current Rating | - | Contact Layout, Typical | 40 Signal, 20 Ground |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Usage | - | Connector Type | Header, Male Pins and Blades |
| Connector Style | High Speed | Color | - |
