1612534-1

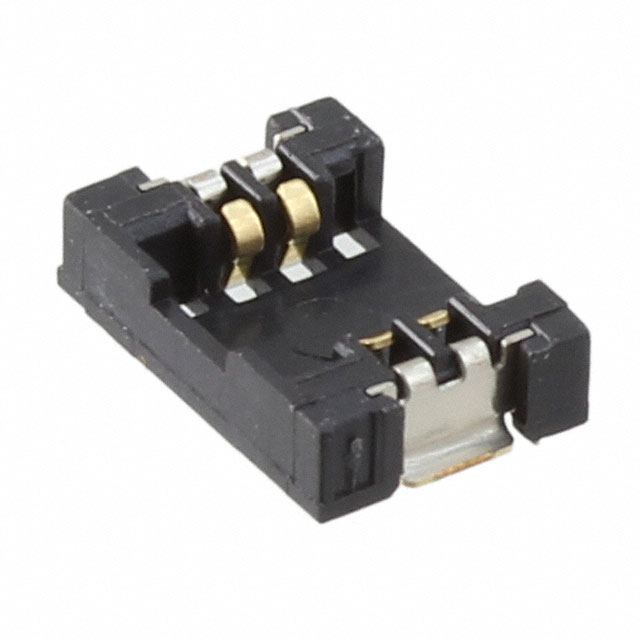

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1612534-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1612534-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1612534-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 2POS GOLD SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.471 | $0.412 | $0.356 | $0.291 | $0.259 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1612534-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 2POS GOLD SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 85873 pcs | Data sheet | 1612534 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 30V |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | Micro SLP | Row Spacing - Mating | - |
| Pitch - Mating | 0.031" (0.80mm) | Packaging | Cut Tape (CT) |
| Other Names | 16125341 A107908CT |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.057" (1.45mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Detent Lock | Detailed Description | 2 Position Receptacle Connector 0.031" (0.80mm) Surface Mount Gold |
| Current Rating | 0.5A | Contact Type | Outer Shroud Contact |
| Contact Shape | - | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | 1.97µin (0.050µm) |
| Contact Finish Thickness - Mating | 12.0µin (0.30µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose |
