1586254-1

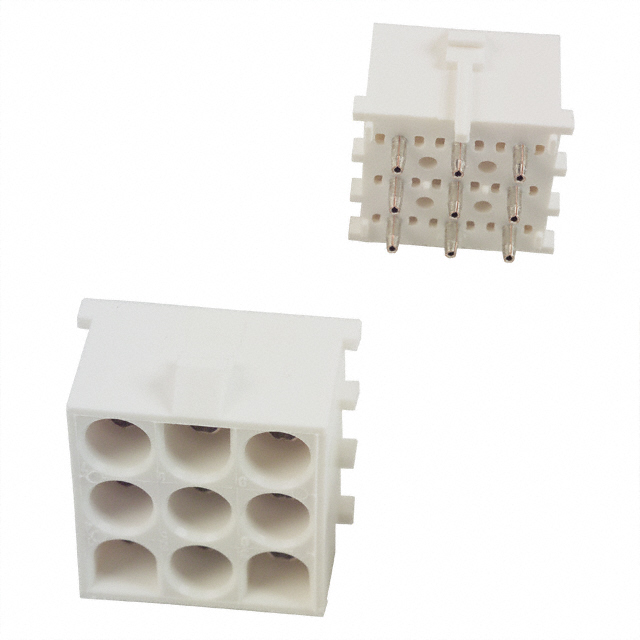

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1586254-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1586254-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1586254-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SOCKET HEADER 9POS U-MNL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1586254-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN SOCKET HEADER 9POS U-MNL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5082 pcs | Data sheet | Universal MATE-N-LOK Instr Sheet1586254 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | Universal MATE-N-LOK | Row Spacing - Mating | 0.250" (6.35mm) |
| Pitch - Mating | 0.250" (6.35mm) | Packaging | Bulk |
| Operating Temperature | - | Number of Rows | 3 |
| Number of Positions Loaded | All | Number of Positions | 9 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.580" (14.73mm) | Insulation Color | - |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Locking Ramp | Detailed Description | 9 Position Header Connector 0.250" (6.35mm) Through Hole Tin |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.155" (3.94mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
