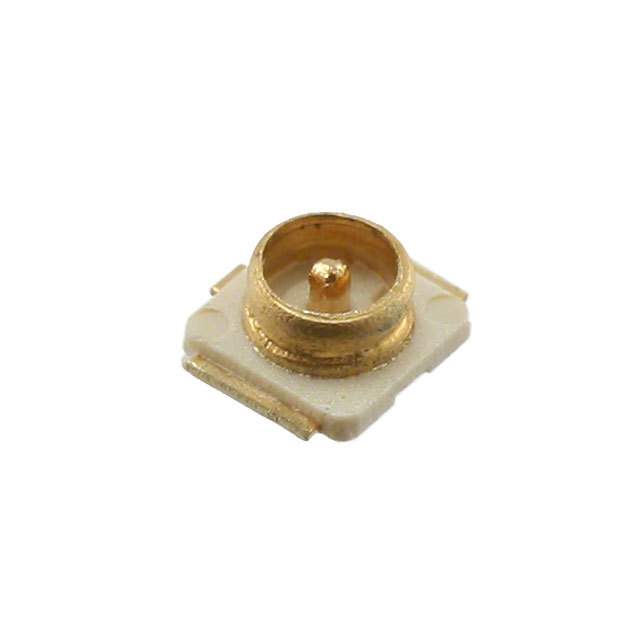

1566230-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1566230-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1566230-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1566230-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN UMC RCPT STR 50 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1566230-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN UMC RCPT STR 50 OHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5106 pcs | Data sheet | UMCC and Cable AssembliesUMCC Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 60V |
| Shield Termination | Solder | Series | - |
| Packaging | Tape & Reel (TR) | Other Names | 1566230-1-ND A36237TR |
| Operating Temperature | -40°C ~ 90°C | Number of Ports | 1 |
| Mounting Type | Surface Mount | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 30 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 0.24dB |
| Ingress Protection | - | Includes | - |
| Impedance | 50 Ohm | Housing Color | - |
| Frequency - Max | 6GHz | Features | - |
| Fastening Type | Snap-On | Dielectric Material | Liquid Crystal Polymer (LCP) |
| Detailed Description | Ultra Miniature Coaxial Connector Receptacle, Male Pin 50 Ohm Surface Mount Solder | Contact Termination | Solder |
| Connector Type | Receptacle, Male Pin | Connector Style | Ultra Miniature Coaxial |
| Center Contact Plating | Gold | Center Contact Material | - |
| Cable Group | - | Body Material | Phosphor Bronze |
| Body Finish | - |
