1565476-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1565476-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1565476-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1565476-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |

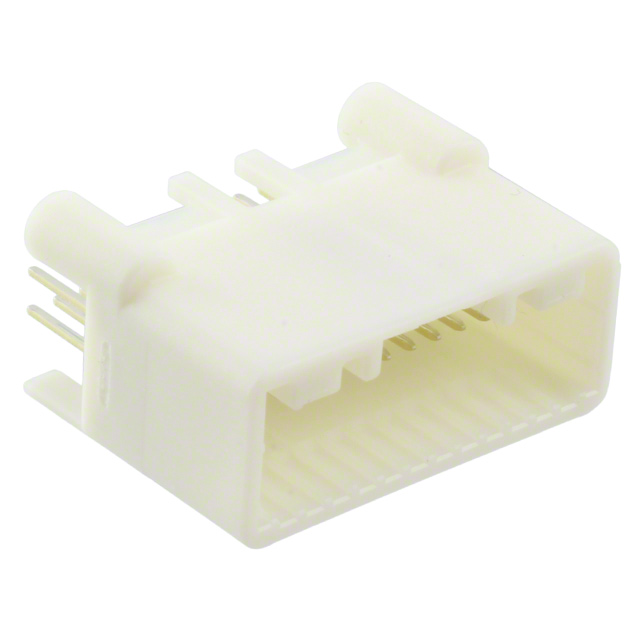

| Description | CONN RECEPT 16POS VERT TIN PIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 684 pcs | ||||
|---|---|---|---|---|---|
| $1.495 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1565476-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RECEPT 16POS VERT TIN PIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21646 pcs | Data sheet | 1565476 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 12VDC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | - |
| Row Spacing - Mating | 0.118" (3.00mm) | Pitch - Mating | 0.087" (2.20mm) |
| Packaging | Tube | Overall Contact Length | - |
| Operating Temperature | -30°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 16 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 HB | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 19 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Insulation Height | 0.921" (23.39mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | Mounting Flange | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole 16 position 0.087" (2.20mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.157" (4.00mm) |
| Contact Length - Mating | 0.217" (5.50mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | Automotive |
