1565357-3

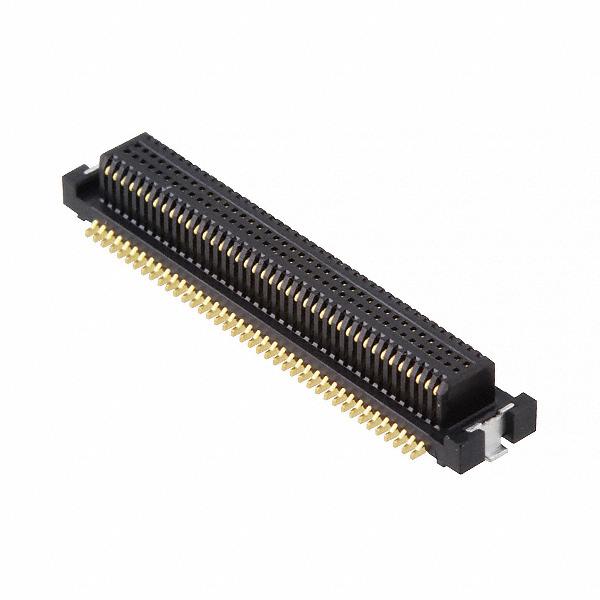

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1565357-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1565357-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1565357-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RECPT 80POS VERT PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1565357-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RECPT 80POS VERT PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5112 pcs | Data sheet | 1565357 Drawing |
| Category | Connectors, Interconnects | Series | Fine Mate |
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Other Names | 1565357-3-ND A118920TR |
Number of Rows | 2 |
| Number of Positions | 80 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mated Stacking Heights | 4mm, 4.5mm, 5.5mm, 6mm |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Above Board | 0.126" (3.20mm) |
| Features | Solder Retention | Detailed Description | 80 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Type | Receptacle, Center Strip Contacts |
