1546728-3

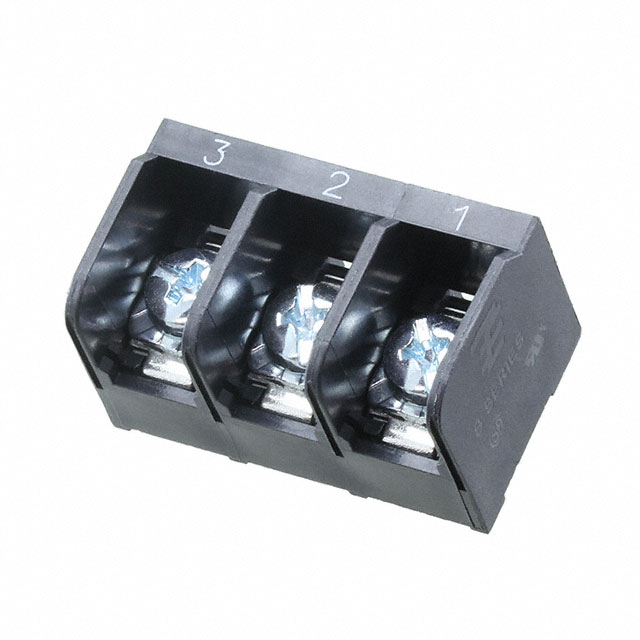

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1546728-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1546728-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1546728-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN BARRIER STRIP 3CIRC 0.438" |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.607 | $1.987 | $1.861 | $1.654 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.618 | $1.493 | $1.349 | $1.196 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1546728-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN BARRIER STRIP 3CIRC 0.438" | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28021 pcs | Data sheet | 8PCV-xx-006 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 10-18 AWG |
| Voltage Rating | 600V | Top Termination | Screws with Captive Plate |
| Terminal Screw Material | Steel | Terminal Screw Finish | Zinc |
| Terminal Block Type | Barrier Block | Series | #8, Buchanan |
| Pitch | 0.438" (11.12mm) | Packaging | Bulk |
| Other Names | 1546728-3-ND 8PCV-03-662 A128059 |
Operating Temperature | -40°C ~ 120°C |
| Number of Wire Entries | 3 | Number of Rows | 1 |
| Number of Circuits | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Thermoplastic | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Positions Stamped |
| Detailed Description | 3 Circuit 0.438" (11.12mm) Barrier Block Connector, Screws with Captive Plate | Current Rating | 30A |
| Color | Black | Bottom Termination | PC Pin |
| Barrier Type | 3 Wall (Tri) |
