1546551-2

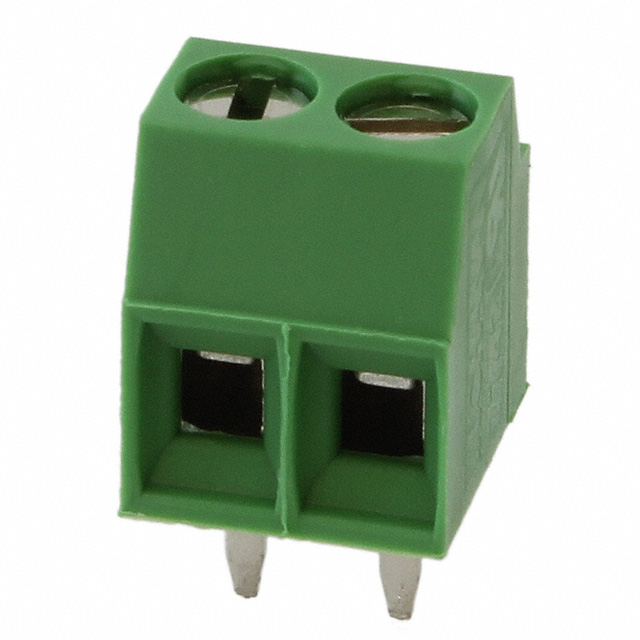

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1546551-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1546551-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1546551-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | TERM BLOCK RCPT 2POS VERT 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.37 | $0.259 | $0.242 | $0.219 | $0.218 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.184 | $0.175 | $0.155 | $0.126 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1546551-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | TERM BLOCK RCPT 2POS VERT 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 160484 pcs | Data sheet | 1546551 Drawing |
| Category | Connectors, Interconnects | Wire Termination | Screw - Rising Cage Clamp |
| Wire Gauge | 16-28 AWG | Voltage | 300V |
| Torque - Screw | - | Series | Buchanan |
| Screw Thread | - | Screw Material - Plating | Copper Alloy - Nickel Plated |
| Positions Per Level | 2 | Pitch | 0.138" (3.50mm) |
| Packaging | Tray | Other Names | 1546551-2-ND A112368 |
| Operating Temperature | -40°C ~ 110°C | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Orientation | Horizontal with Board | Manufacturer Standard Lead Time | 21 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Features | - | Detailed Description | 2 Position Wire to Board Terminal Block Horizontal with Board 0.138" (3.50mm) Through Hole |
| Current | 12A | Contact Material - Plating | Copper Alloy - Tin Plated |
| Color | Green | Clamp Material - Plating | Copper Alloy - Nickel Plated |
