1546147-1

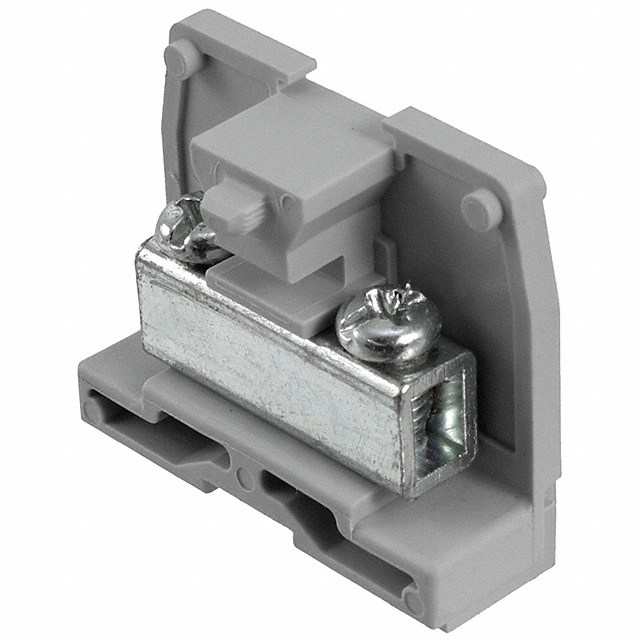

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1546147-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1546147-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1546147-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | TERM BLK NEMA 2POS 10.85MM GRAY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.347 | $1.026 | $0.961 | $0.855 | $0.836 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.771 | $0.697 | $0.618 | $0.581 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1546147-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | TERM BLK NEMA 2POS 10.85MM GRAY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 54118 pcs | Data sheet | 1546147 Drawing |
| Category | Connectors, Interconnects | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | 8-22 AWG | Voltage - UL | 600V |
| Type | NEMA Open Construction | Termination Style | Tubular Screw |
| Terminal - Width | 10.9mm | Stripping Length | - |
| Series | 900, Buchanan | Other Names | 1546147-1-ND 15461471 A106578 |
| Operating Temperature | 150°C | Number of Positions | 2 |
| Number of Levels | 1 | Mounting Type | Direct Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Polyester | Manufacturer Standard Lead Time | 17 Weeks |
| Length | 1.231" (31.27mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Color | Gray | Height (Max) | 1.225" (31.12mm) |
| Features | - | Detailed Description | 2 Position Terminal Block Gray NEMA Open Construction 10.9mm |
| Current - UL | 50A |
