1546074-3

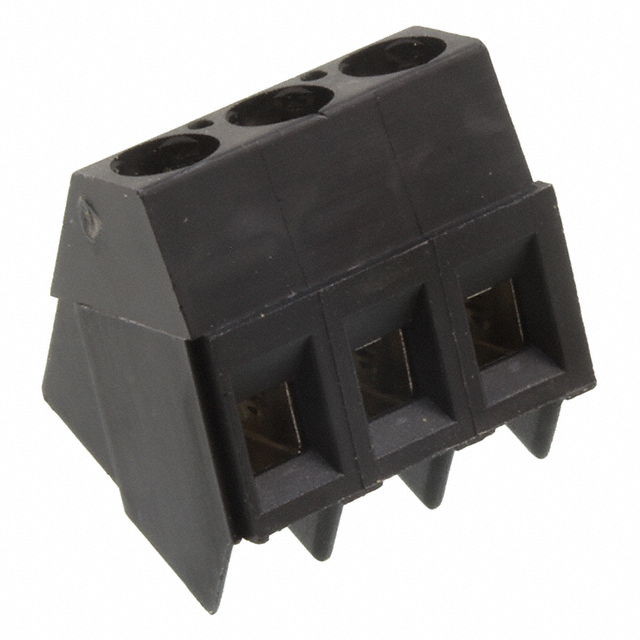

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1546074-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1546074-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1546074-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN TERM BLOCK 3POS VERT TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.755 | $0.571 | $0.529 | $0.476 | $0.464 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.406 | $0.372 | $0.337 | $0.296 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1546074-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN TERM BLOCK 3POS VERT TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67586 pcs | Data sheet | 1546074 |
| Category | Connectors, Interconnects | Wire Termination | Screw - Rising Cage Clamp |
| Wire Gauge | 12-30 AWG | Voltage | 300V |
| Torque - Screw | 0.79 Nm (7.0 Lb-In) | Series | Buchanan |
| Screw Thread | M3 | Screw Material - Plating | Brass - Nickel Plated |
| Positions Per Level | 3 | Pitch | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | 1546074-3-ND 15460743 A112337 |
| Operating Temperature | -40°C ~ 105°C | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Orientation | 35° (145°) Angle with Board | Manufacturer Standard Lead Time | 21 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Features | Interlocking (Side) | Detailed Description | 3 Position Wire to Board Terminal Block 35° (145°) Angle with Board 0.200" (5.08mm) Through Hole |
| Current | 17.5A | Contact Material - Plating | Brass - Tin Plated |
| Color | Black | Clamp Material - Plating | Brass - Nickel Plated |
