1534238-1

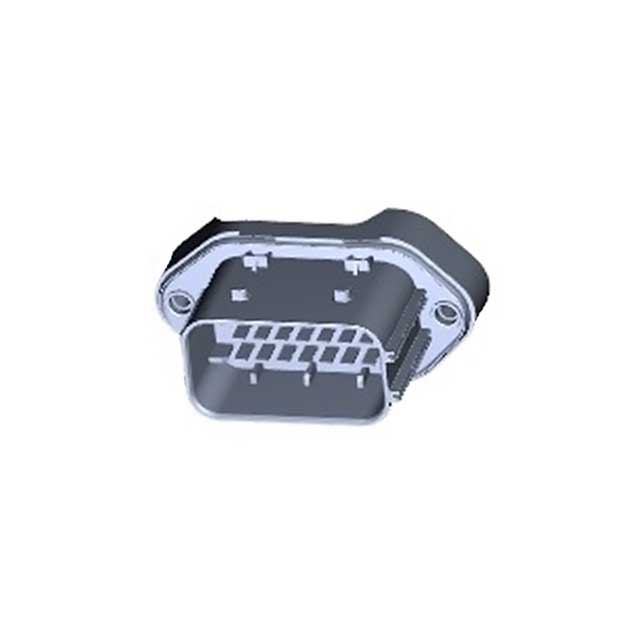

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1534238-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1534238-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1534238-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 21POS VERT SILVER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 420 pcs | ||||
|---|---|---|---|---|---|
| $11.397 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1534238-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 21POS VERT SILVER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3022 pcs | Data sheet | 1534238 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | MCP |
| Row Spacing - Mating | 0.217" (5.51mm) | Pitch - Mating | 0.197" (5.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Operating Temperature | - | Number of Rows | 3 |
| Number of Positions Loaded | All | Number of Positions | 21 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Insulation Height | 1.738" (44.15mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide, Mating Flange | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 21 position 0.197" (5.00mm) | Current Rating | - |
| Contact Type | Tab | Contact Shape | Rectangular |
| Contact Material | Copper Alloy | Contact Length - Post | 0.183" (4.65mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Silver | Connector Type | Header |
| Applications | - |
