147548-1

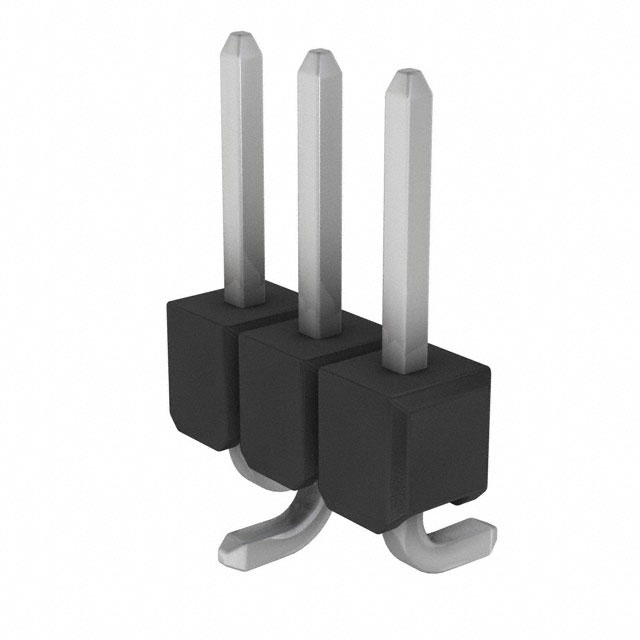

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 147548-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 147548-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 147548-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 03 MODII HDR SR SFMT B/A T&R |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 600 pcs | ||||
|---|---|---|---|---|---|
| $0.337 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 147548-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 03 MODII HDR SR SFMT B/A T&R | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 70128 pcs | Data sheet | 147548 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | AMPMODU Mod II |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Operating Temperature | - | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 3 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.090" (2.29mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Pick and Place |
| Fastening Type | - | Detailed Description | Connector Header Surface Mount 3 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.320" (8.13mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Tin-Lead |
| Connector Type | Header, Breakaway | Applications | - |
